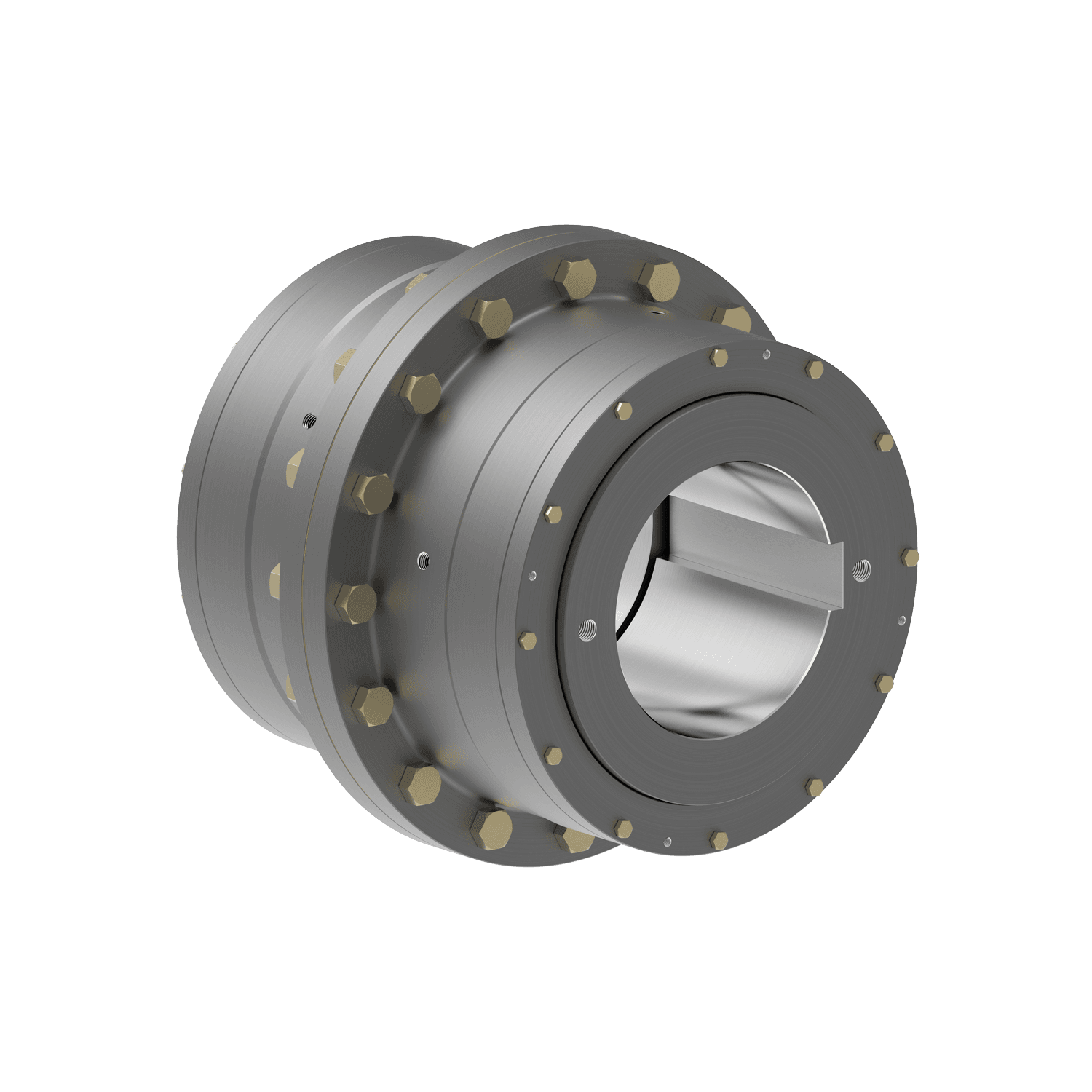

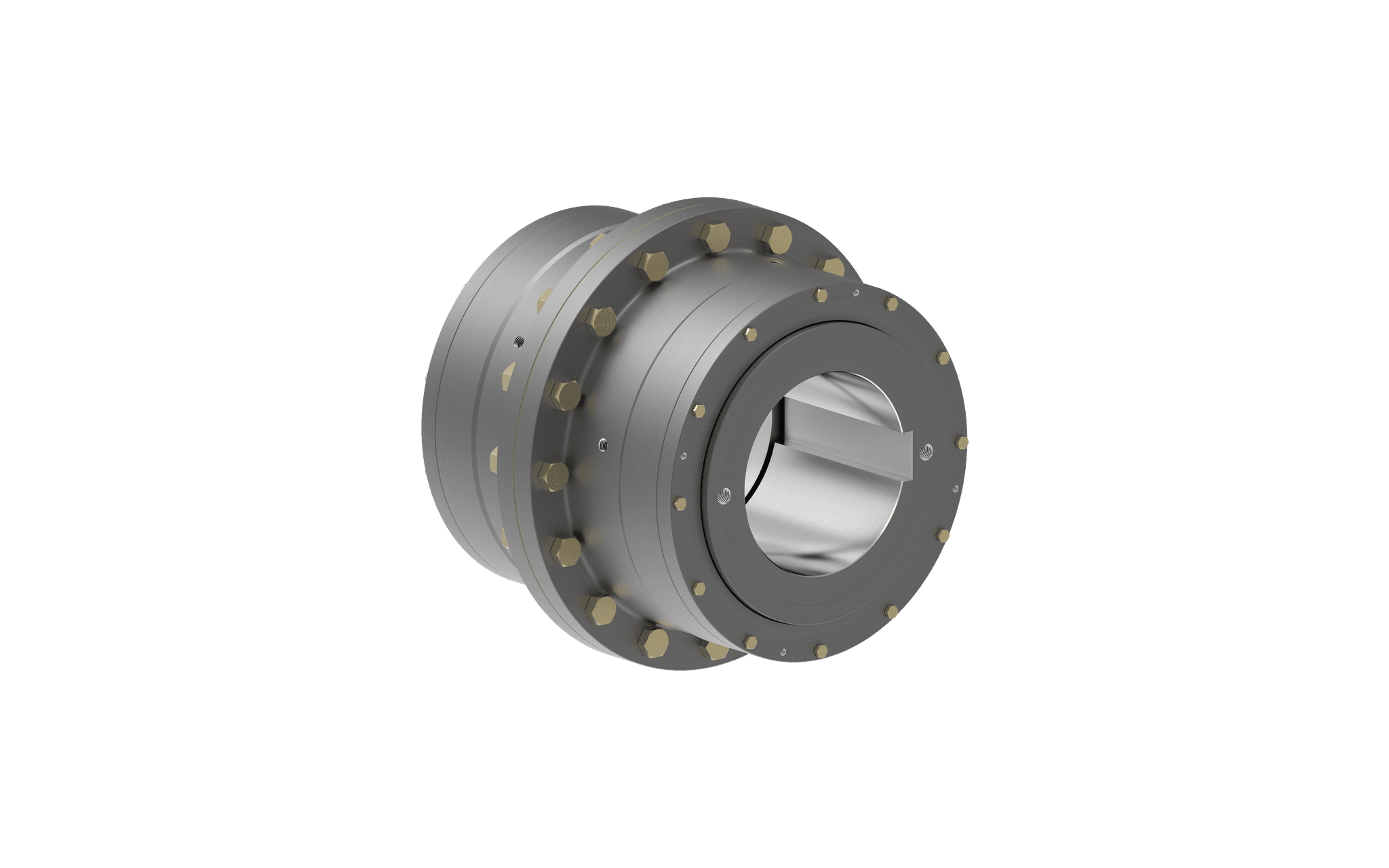

General Features
- Nominal torque range: 1,337 to 1,155,465 Nm
- Maximum speed: 8,000 RPM
- Standard double-jointed couplings accommodate angular, parallel, or combined misalignment without applying significant axial loads to adjacent bearings
- Can accommodate large shaft diameters depending on the coupling size
Product Characteristics
- High torque capacity with increased service factor allows for smaller coupling sizes
- RLZ gear couplings are designed to accommodate up to 1.5° of static misalignment per gear mesh
- Recommended operating misalignment is limited to 0.75° per gear mesh
- Exposed bolt design allows the use of both open-ended wrenches, making it a preferred choice for most industrial applications
