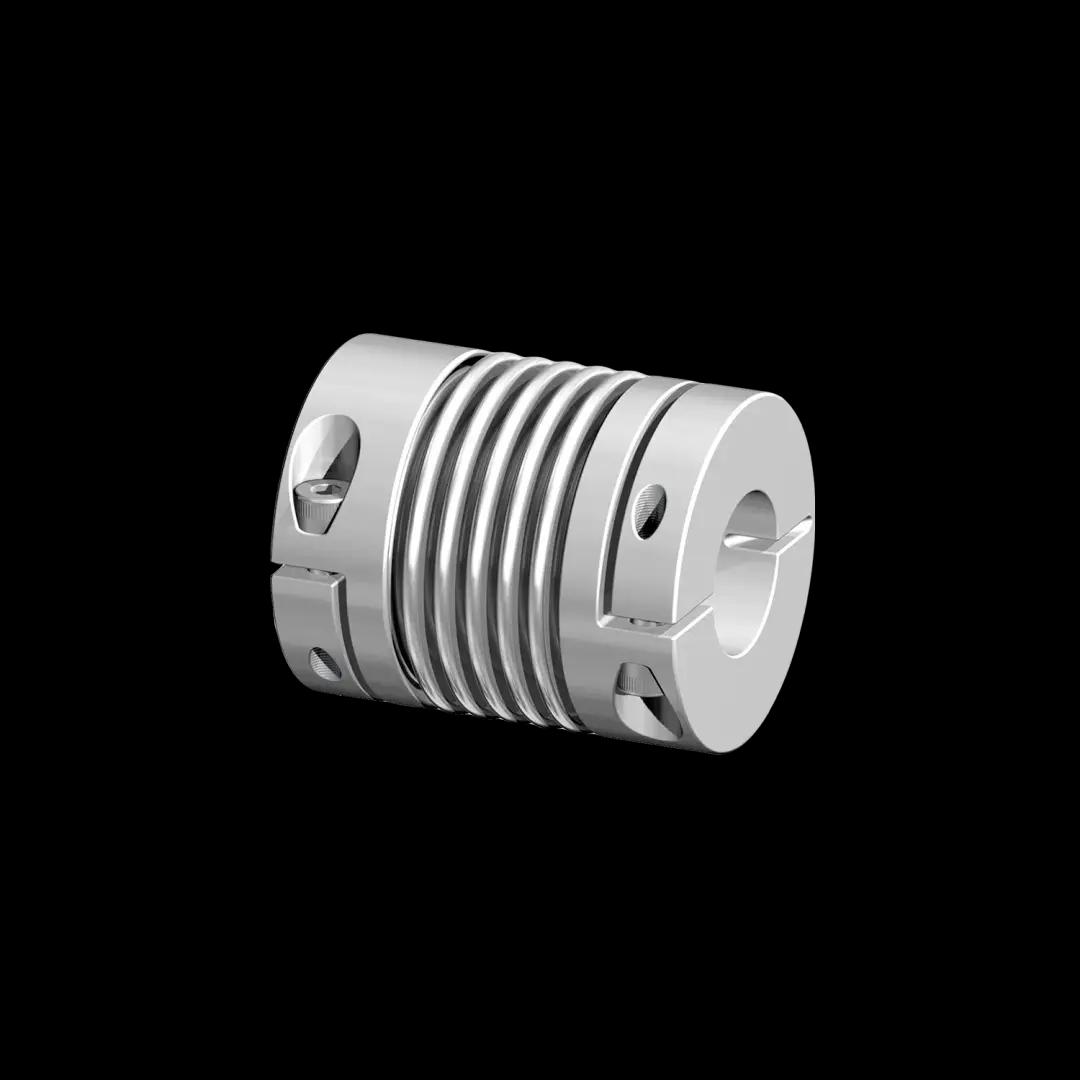

General Features
- Nominal torque range: 0.5 to 12 Nm
- Simple and secure installation
- Backlash-free torque transmission
- High torsional rigidity for precise angular displacement
- Compact design with low moment of inertia
- Metal bellows made of stainless steel
- Compensation for radial, axial, and angular misalignments
Product Features
- Operates reliably between -30°C and +100°C
- Optional custom design in stainless steel
- Other sizes available upon request
- Wear-free, maintenance-free, and uninterrupted operation
- Shaft tolerance must comply with “g6” or “h7” fit
- Optional designs with DIN 6885-1 keyways
- Contact surfaces must be free of oil and grease
