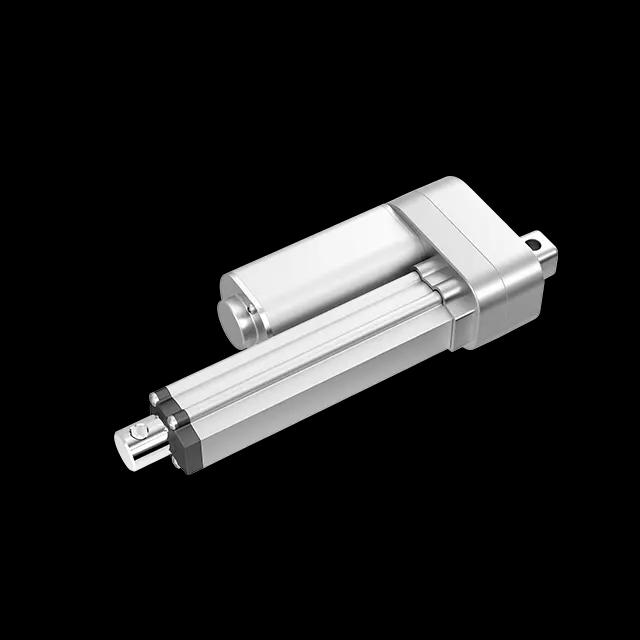

BBS35W2

With its compact design and quiet operation, it is an ideal linear motion solution for medical and industrial systems.

Quiet, powerful, and compact: the BBSJC35W2 linear actuator provides a reliable motion solution for medical systems.

  • Push Load: 3000N, 2000N, 1000N
  • Pull Load: 3000N, 2000N, 1000N
  • Color: Silver Gray
  • Protection Class (IP Rating): IPX4
  • Stroke Length:

    • 3000N: 50–250 mm (in 4 mm increments)
    • 2000N: 50–400 mm (in 4 mm increments)
    • 1000N: 50–400 mm (in 4 mm increments)

    Installation Dimensions:

    • L = 170 mm (for S ≤ 50 mm)
    • L = S + 120 mm (for 50 mm < S ≤ 400 mm)


    Gürültü Seviyesi: ≤48 dB (çevresel gürültü ≤40 dB)

    Hall Sensörü: Opsiyonel
    Dahili Elektriksel Limit Şalteri

    Ağırlık: Yaklaşık 1,7 kg (strok uzunluğu ve montaj ölçülerine göre değişiklik gösterebilir)

    Statik Eğilme Momenti: Yanal yüklemeye izin verilmez
