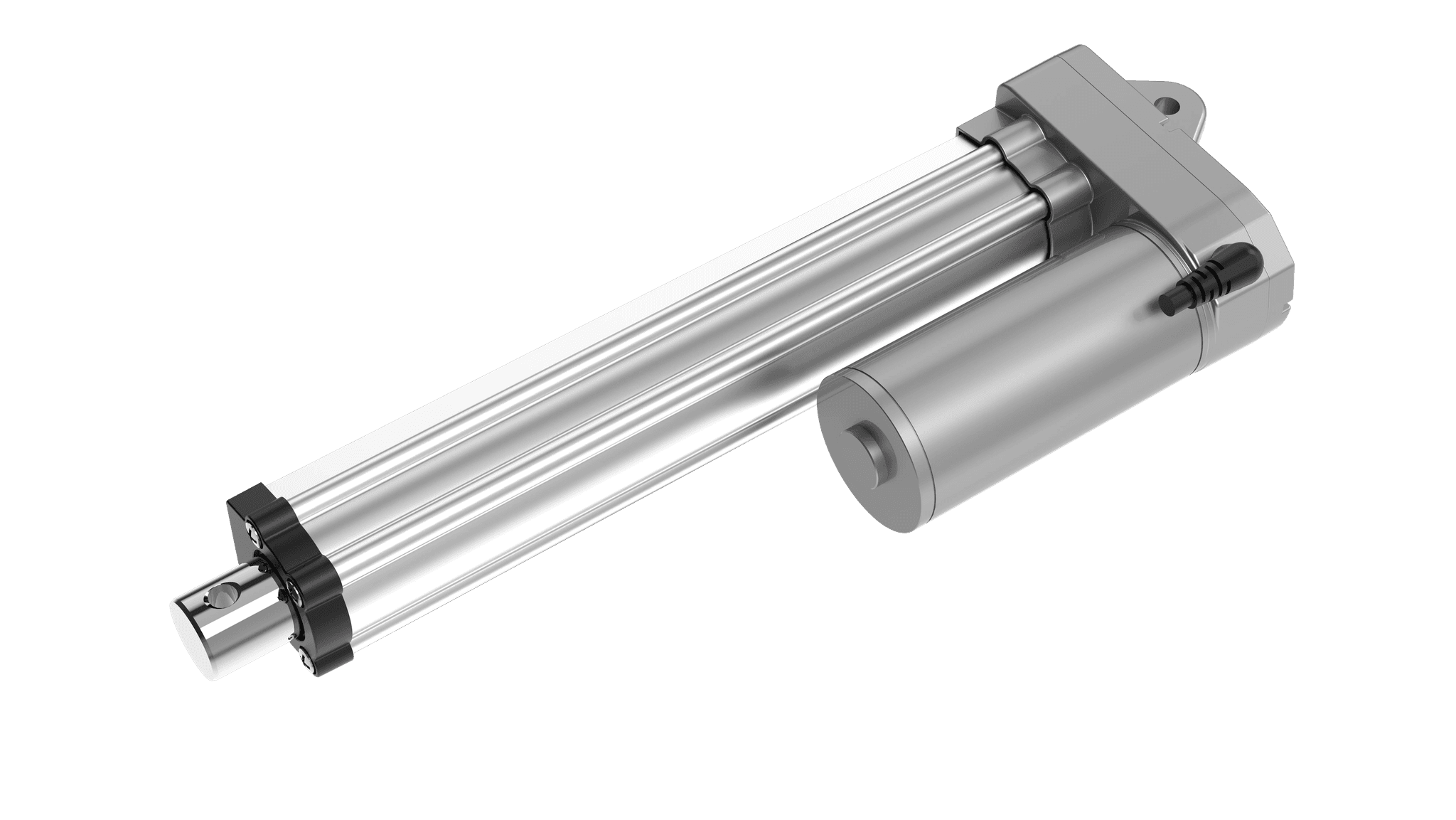

BBS35FA8
With its compact design and IP66M protection, it stands out for offering a wide range of load options and precise feedback capabil
With its compact design, various load capacities, and high protection rating, the BBS35FA8 provides reliable motion control for industrial automation applications.
Technical Specifications
- Maximum dynamic load (kN): 0.12 / 0.24 / 0.5 / 0.75 / 1 / 1.5
- Maximum static load (kN): 0.12 / 0.24 / 0.5 / 0.75 / 1 / 1.5
- Load speeds (mm/s): 50 / 26 / 14 / 10 / 7.5 / 5
- Stroke / Mounting Dimension (mm):
L = S + 110 mm (20 ≤ S ≤ 500 mm, if S ≤ 50 mm then L = 160 mm)
L = S + 130 mm (501 ≤ S ≤ 750 mm)
L = S + 150 mm (751 ≤ S ≤ 1000 mm)
Technical Specifications
- Protection class: IP66M
- Salt spray test (hours): 240
- Operating temperature range: -30°C ~ +65°C
- Voltage options (V): 12 / 24 / 36 / 48
- Signal feedback options: Hall sensor, Potentiometer, Passive signal switch, External magnetic sensor switch
