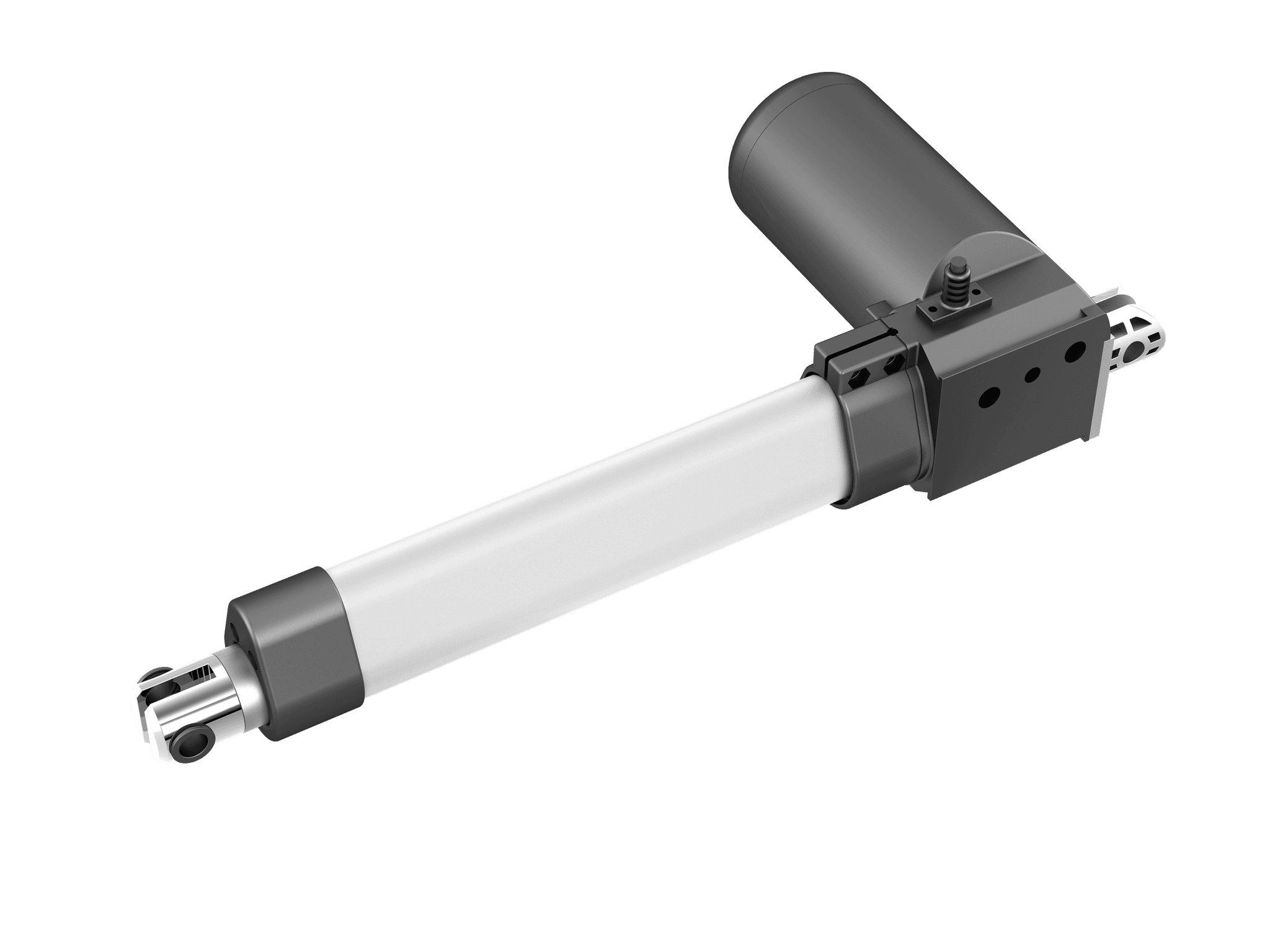

BBS35DF Industrial Linear Actuator | Specifications
- Push Load (N): 6000, 4000, 3000, 2000, 1500, 1000, 500
- Color: Gray / Black
- Protection Class (IP Rating): Maximum IP66
Stroke Length:
- 6000N: 50–250 mm (increments of 4 mm)
- 4000N: 50–400 mm (increments of 4 mm)
- 3000N: 50–400 mm (increments of 4 mm)
- 2000N: 50–600 mm (increments of 4 mm)
- 1500N: 50–600 mm (increments of 4 mm)
- 1000N: 50–600 mm (increments of 4 mm)
- 500N: 50–600 mm (increments of 4 mm)
Installation Dimensions:
- L = 235 mm (for S ≤ 50 mm)
- L = S + 185 mm (for 50 mm < S ≤ 400 mm)
- L = S + 195 mm (for 400 mm < S ≤ 600 mm)
Noise Level: ≤48 dB (ambient noise ≤40 dB)
Optional Features:
- Limit switch: Hall sensor
- Push-only function (no pull)
- Reed switch (magnetic sensor)
Limit Switch: Built-in (electrical)
Weight: Approx. 1.5 kg (varies with stroke length and installation dimension)
Static Bending Moment: Lateral loads not permitted
Certifications / Approvals:
- IEC 60601-1:2012
- EN 60601-1:2006 + A12:2014
- ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012, A2:2010/(R)2012
