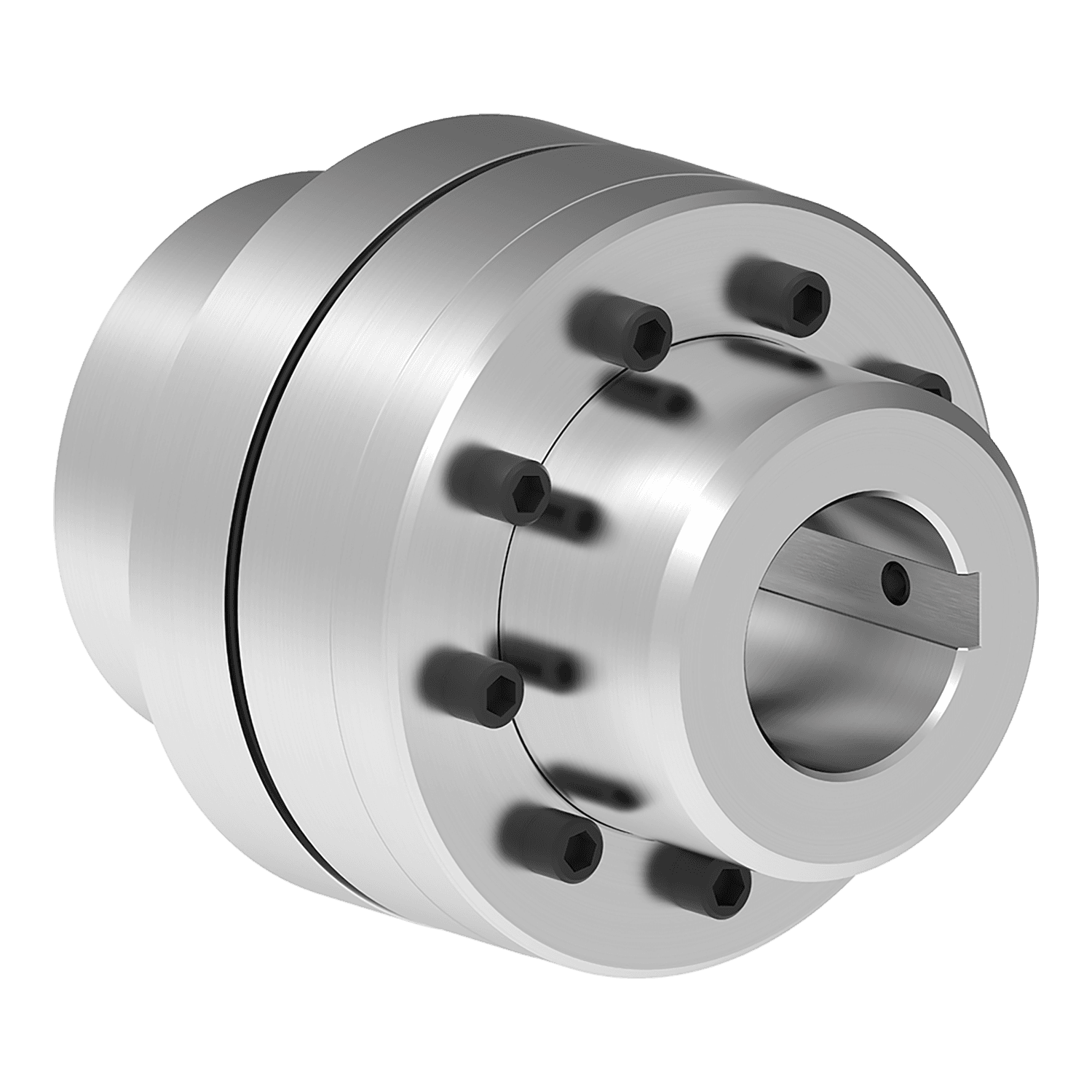

General Features
- Nominal torques ranging from 13 to 41,000 Nm
- Maximum 5,000 rpm
- Compensation for radial, axial, and angular misalignments
- Torsionally flexible
- Coupling elastomer can be replaced by moving only part of the connected machinery
Product Characteristics
- Elastomer materials used operate reliably within ambient temperatures of –30°C to +100°C
- Coupling complies with the European Directive 2014/34/EU (ATEX)
- Nitrile butadiene rubber (NBR) with hardness Pb 72 – 72 Shore A and Pb 82 – 82 Shore A
- Compression-loaded coupling elastomers
