Locking assemblies
โซลูชันแบบครบวงจรและพร้อมใช้งานสำหรับการยึดดุมเข้ากับเพลาและแกนด้วยความแม่นยำ
Contact us if you have any questions.
Contact usOur quality brands

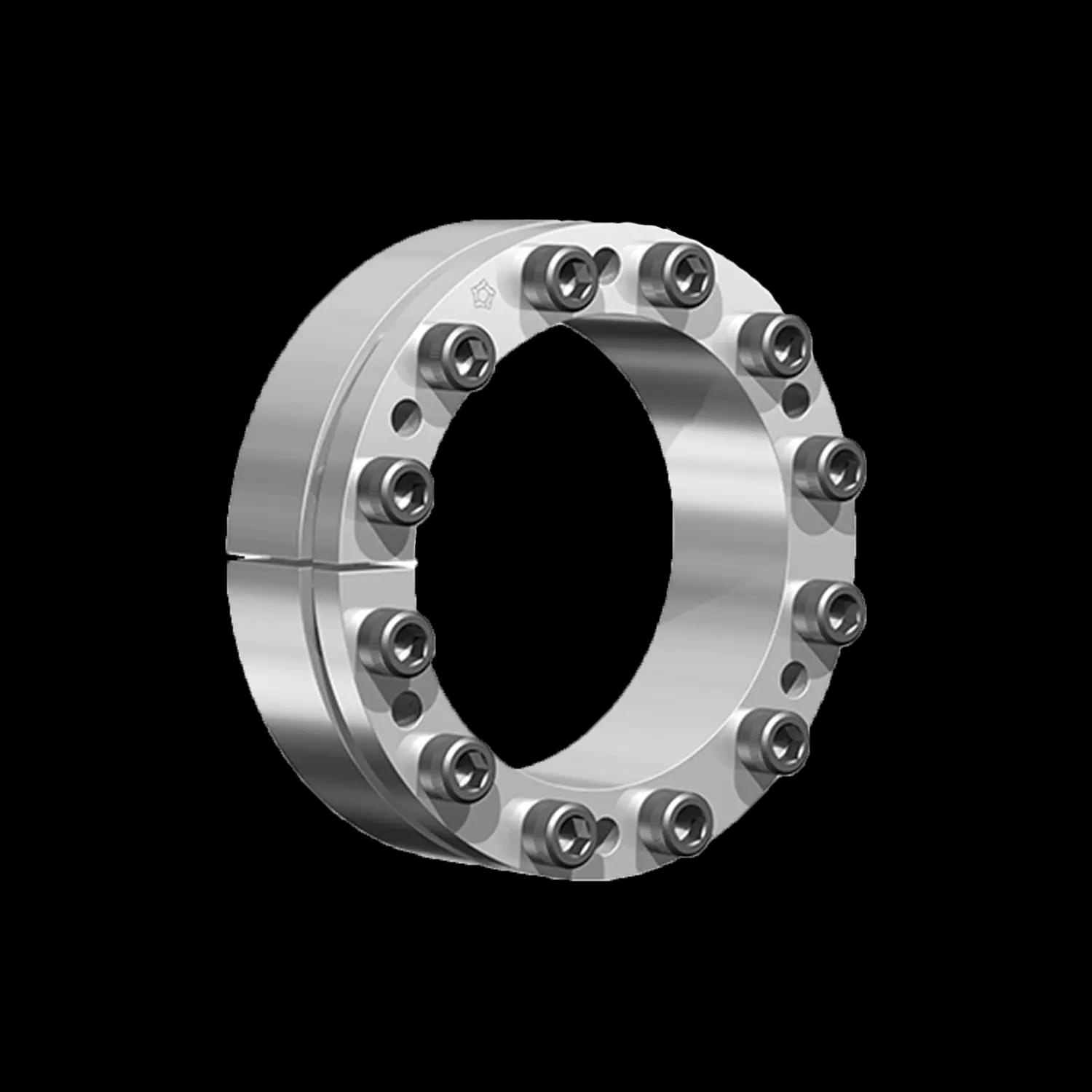

RfN 7003
Short 2-piece version, self-centring.

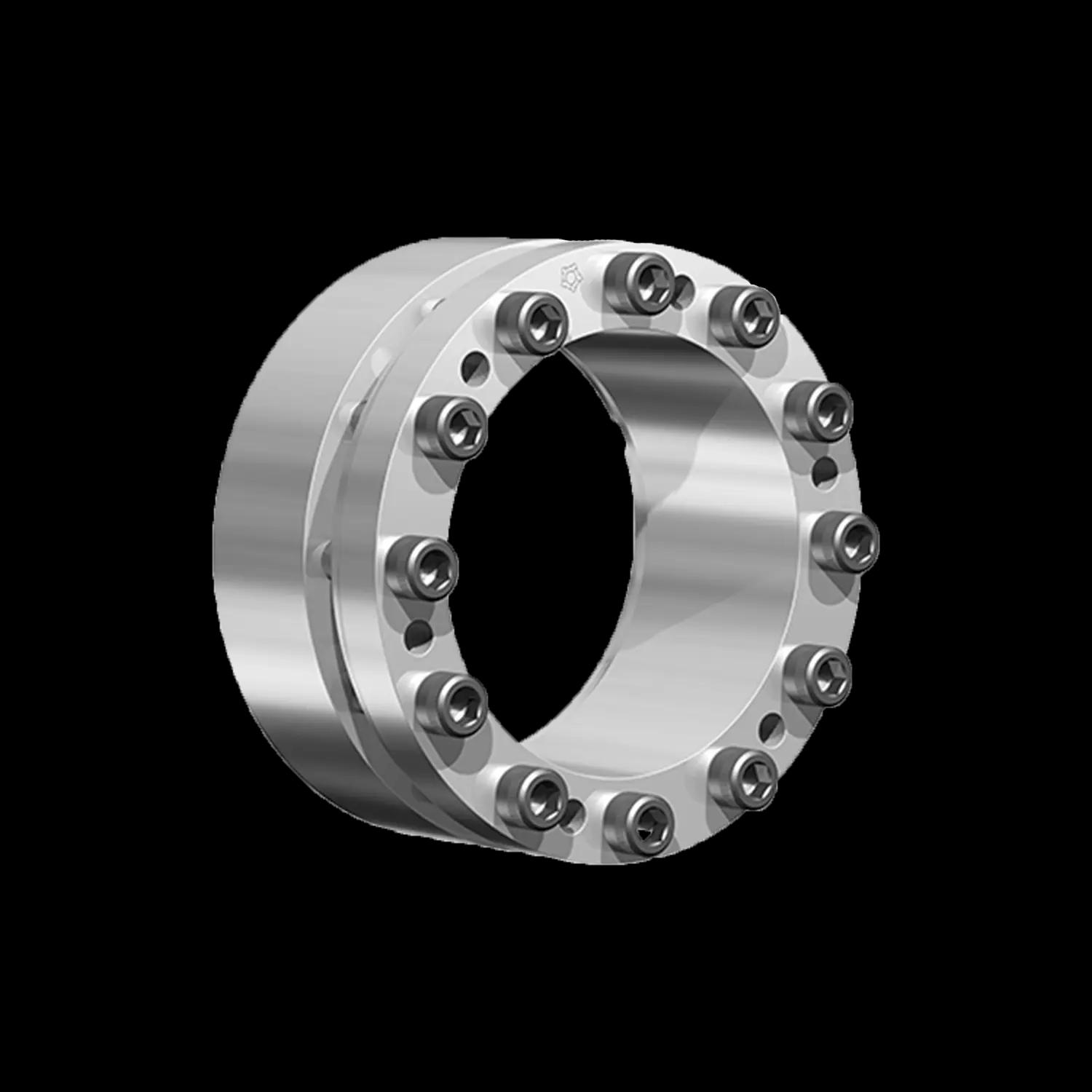

RfN 7004
The RfN 7004 locking assembly is an extended version of the tried-and-tested RfN 7003 series.
RfN 7005
Long 3-piece version for high torques, self-centring.

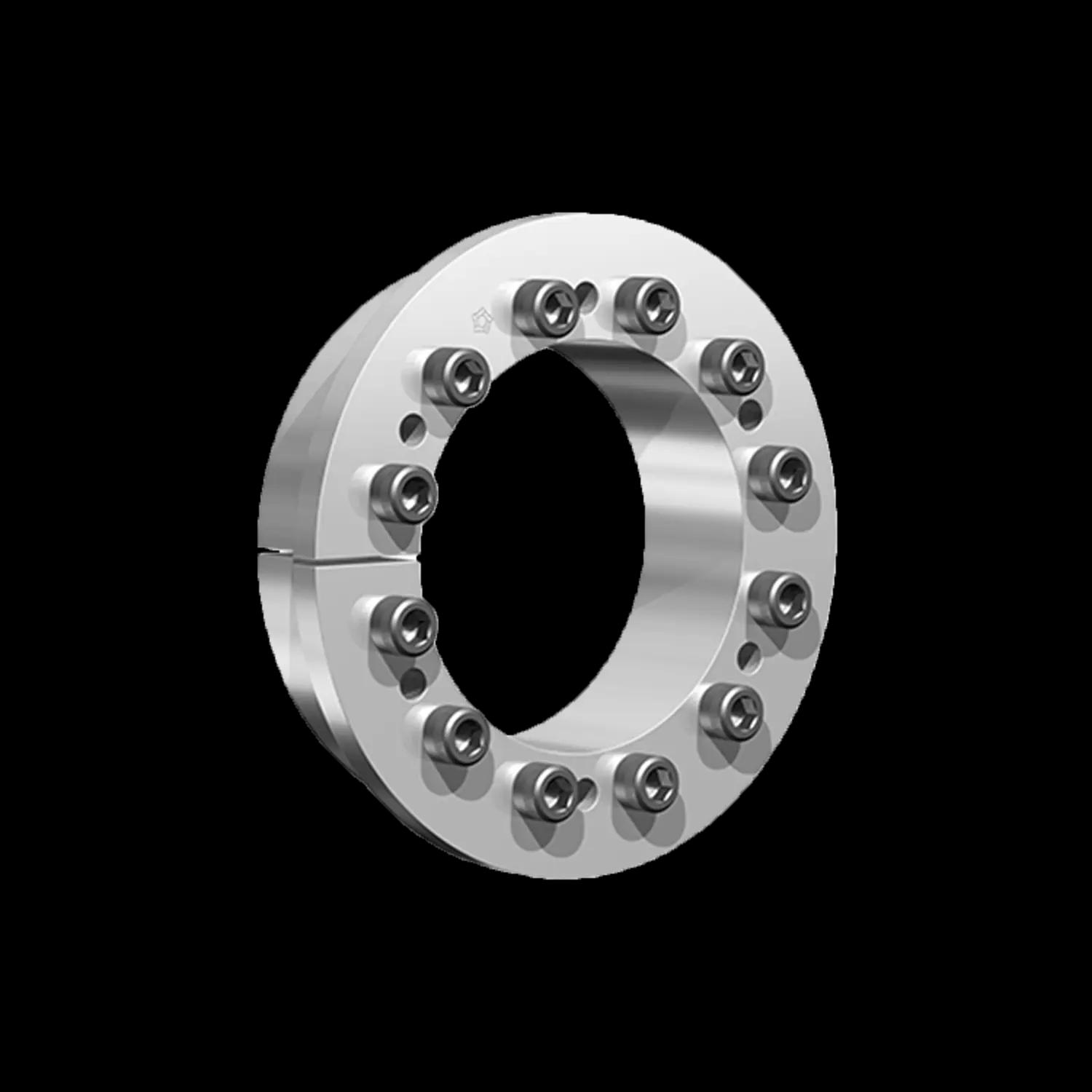

RfN 7006
The series 7003 locking assembly has an impressive range of features.

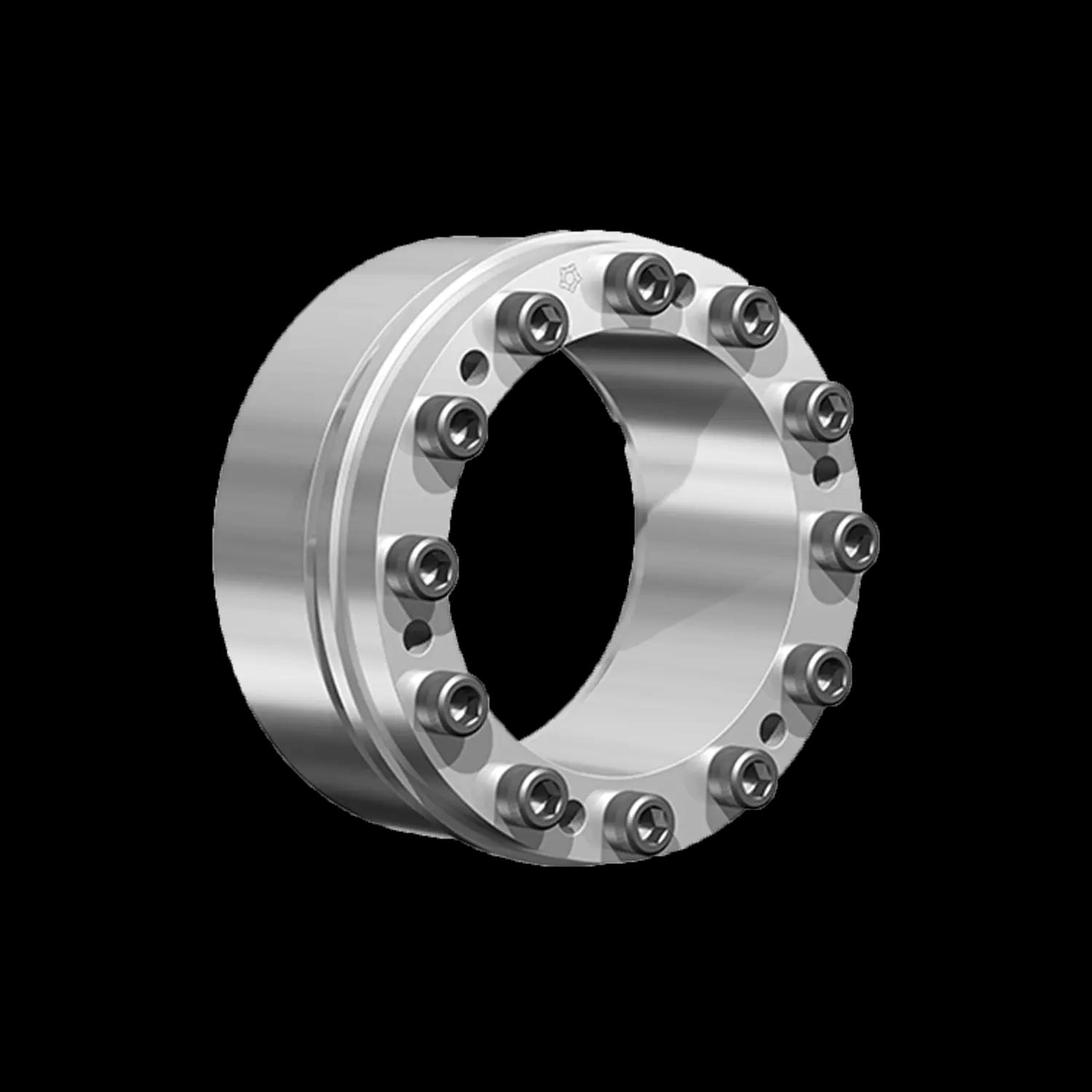

RfN 7007
The RfN 7007 locking assembly is a variant of the tried-and-tested RfN 7004 and inherits all the positive features of this model.
RfN 7012
Ultra-narrow 4-piece version. Due to the clamping cones, there is no axial displacement. Self-releasing.
RfN 7012.2
Identical to the RfN 7012, but suitable for high bending moments thanks to the optimised screws.

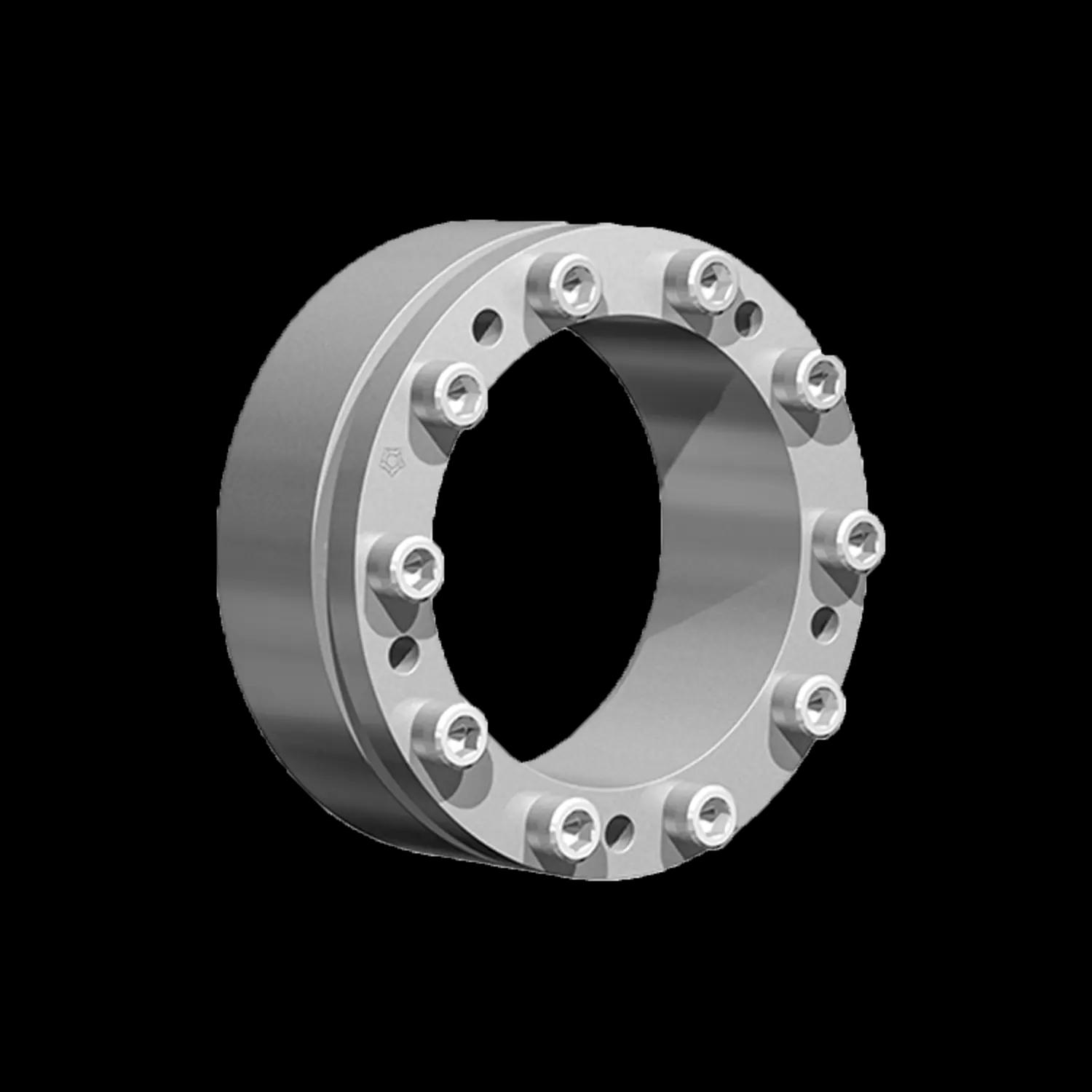

RfN 7013.0
Short 3-piece version, self-centring.

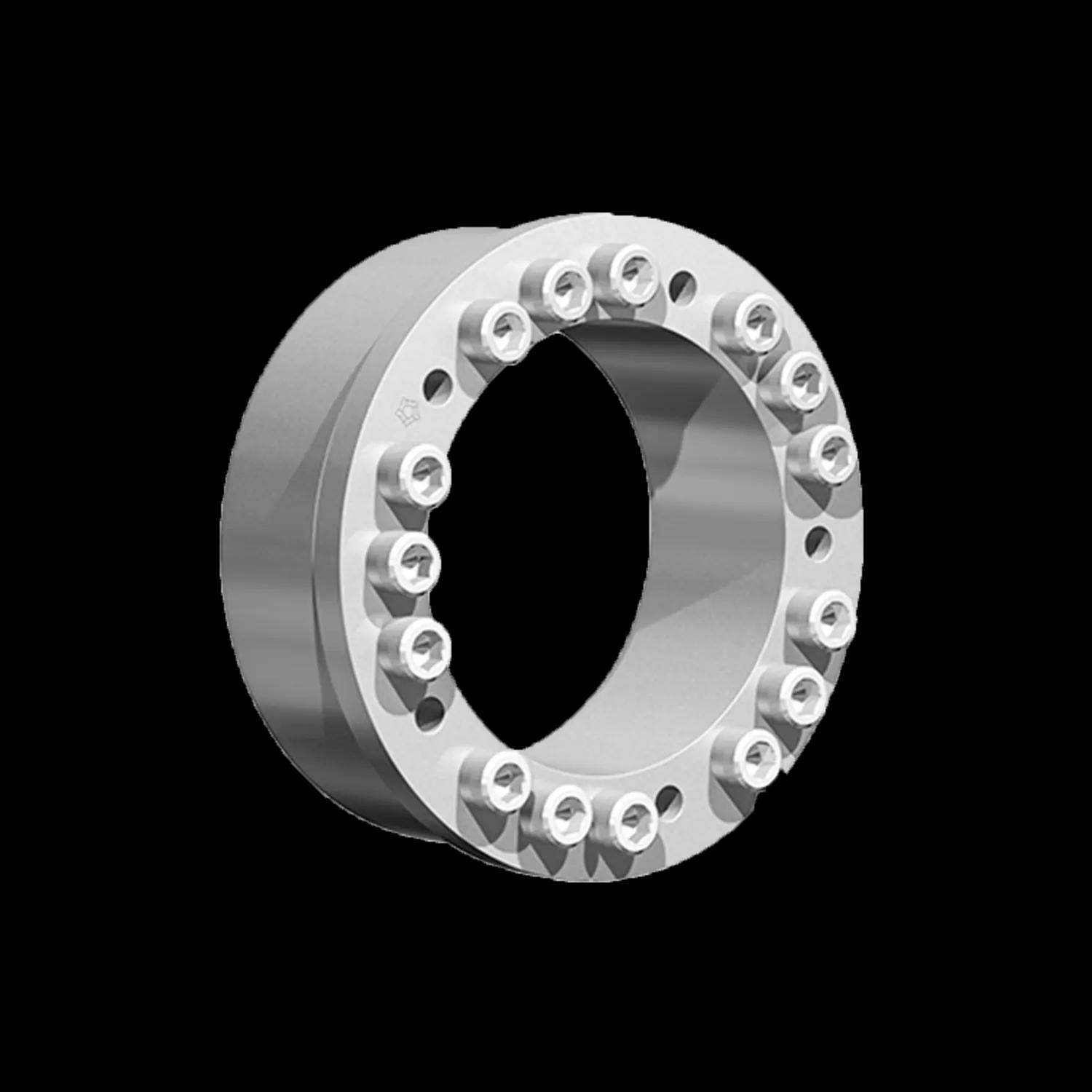

RfN 7013.1
Short 3-piece version with flange, self-centring. Due to the flange, there is no axial displacement.

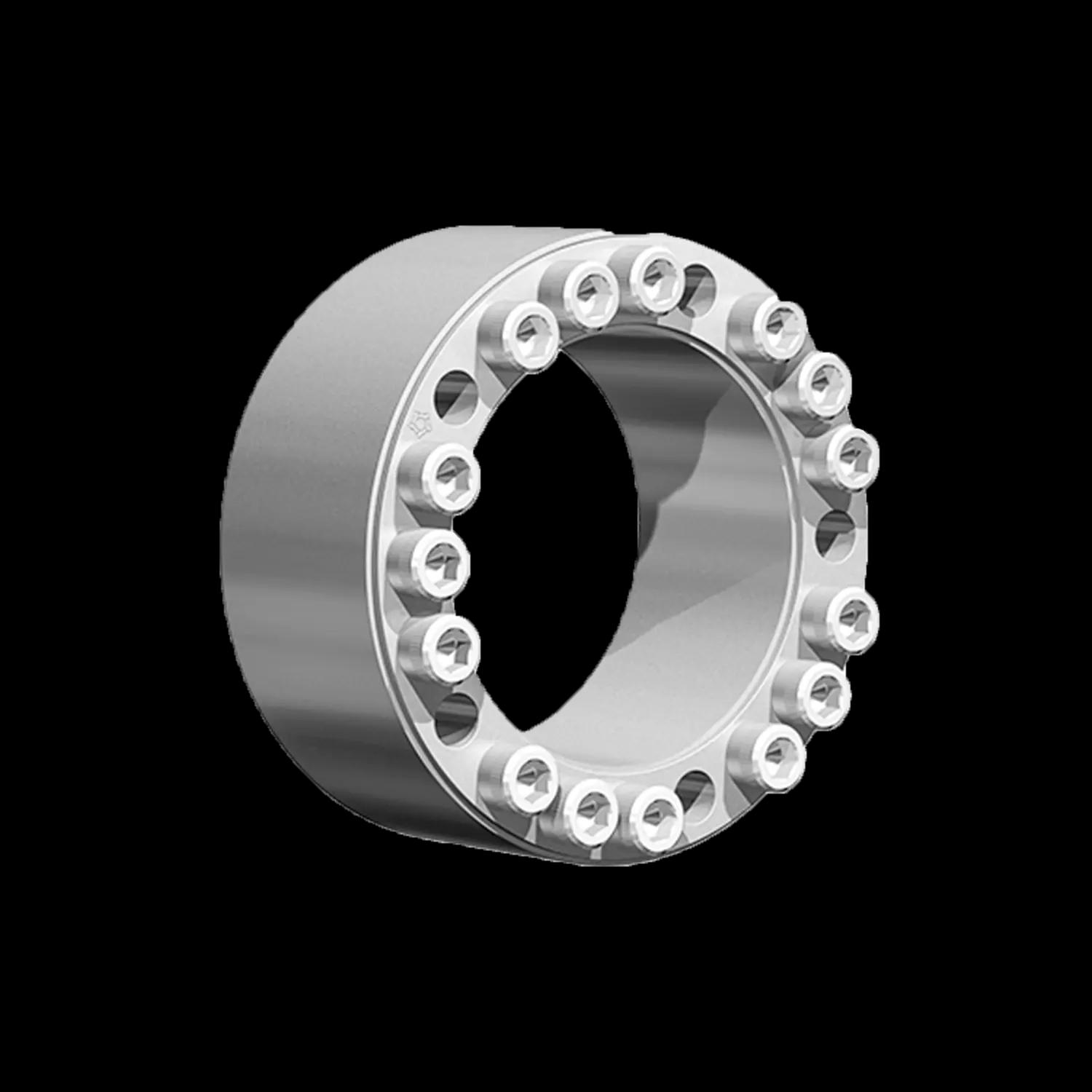

RfN 7014
Long 4-piece version, self-centring. Due to the clamping cones, there is no axial displacement.

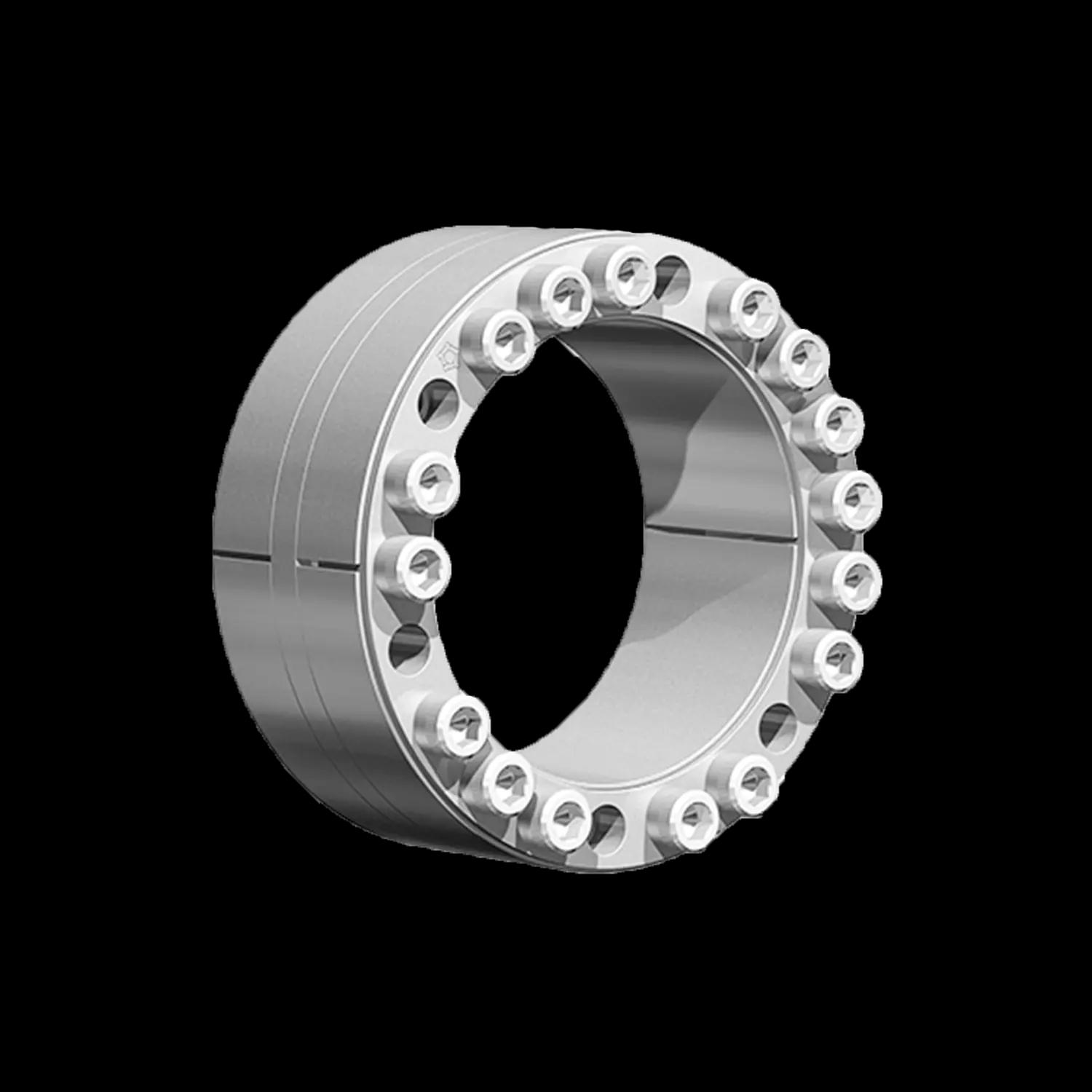

RfN 7015.0
5-piece precision locking assembly, self-centring. No axial displacement of the hub and shaft.

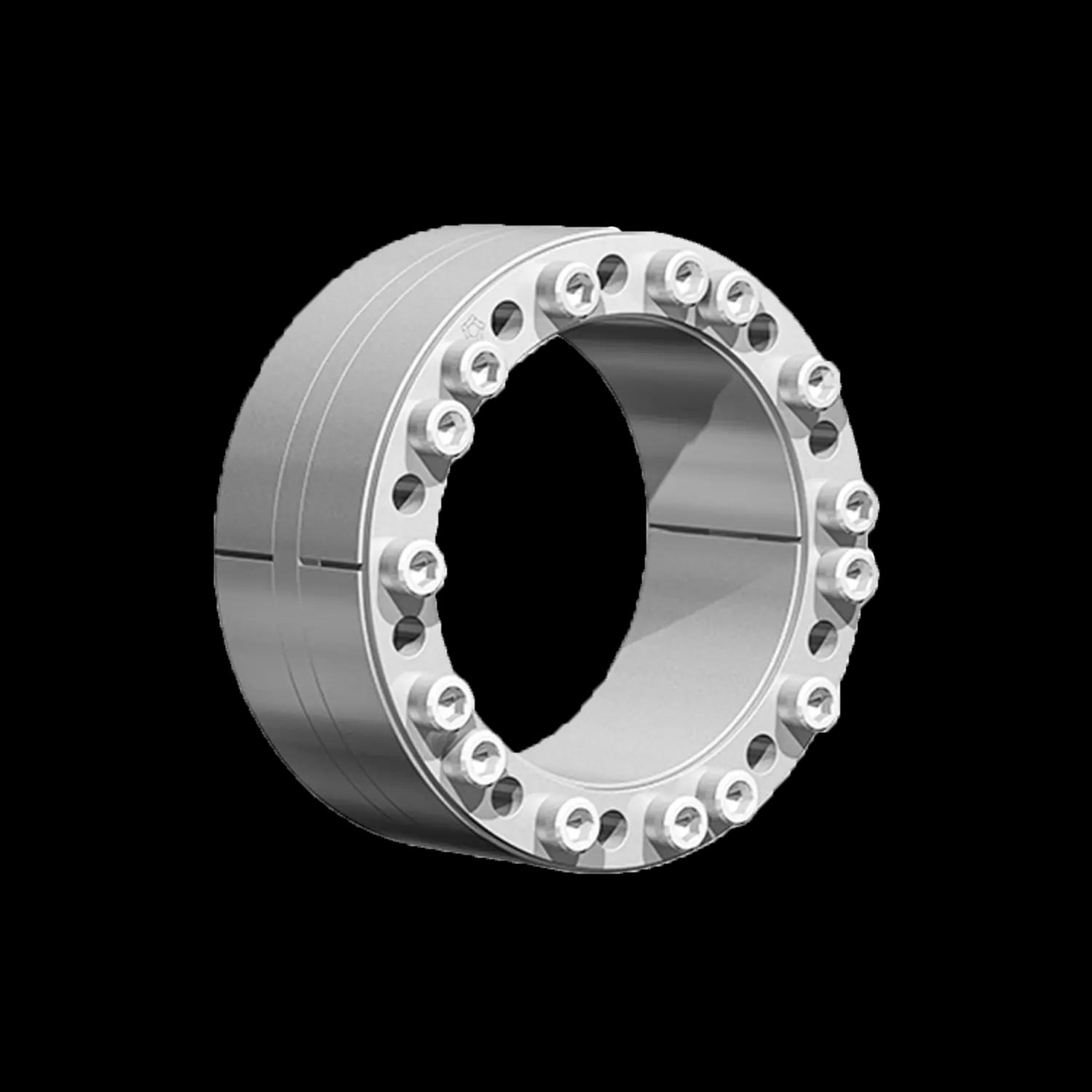

RfN 7015.1
5-piece precision locking assembly, self-centring. No axial displacement of the hub and shaft.

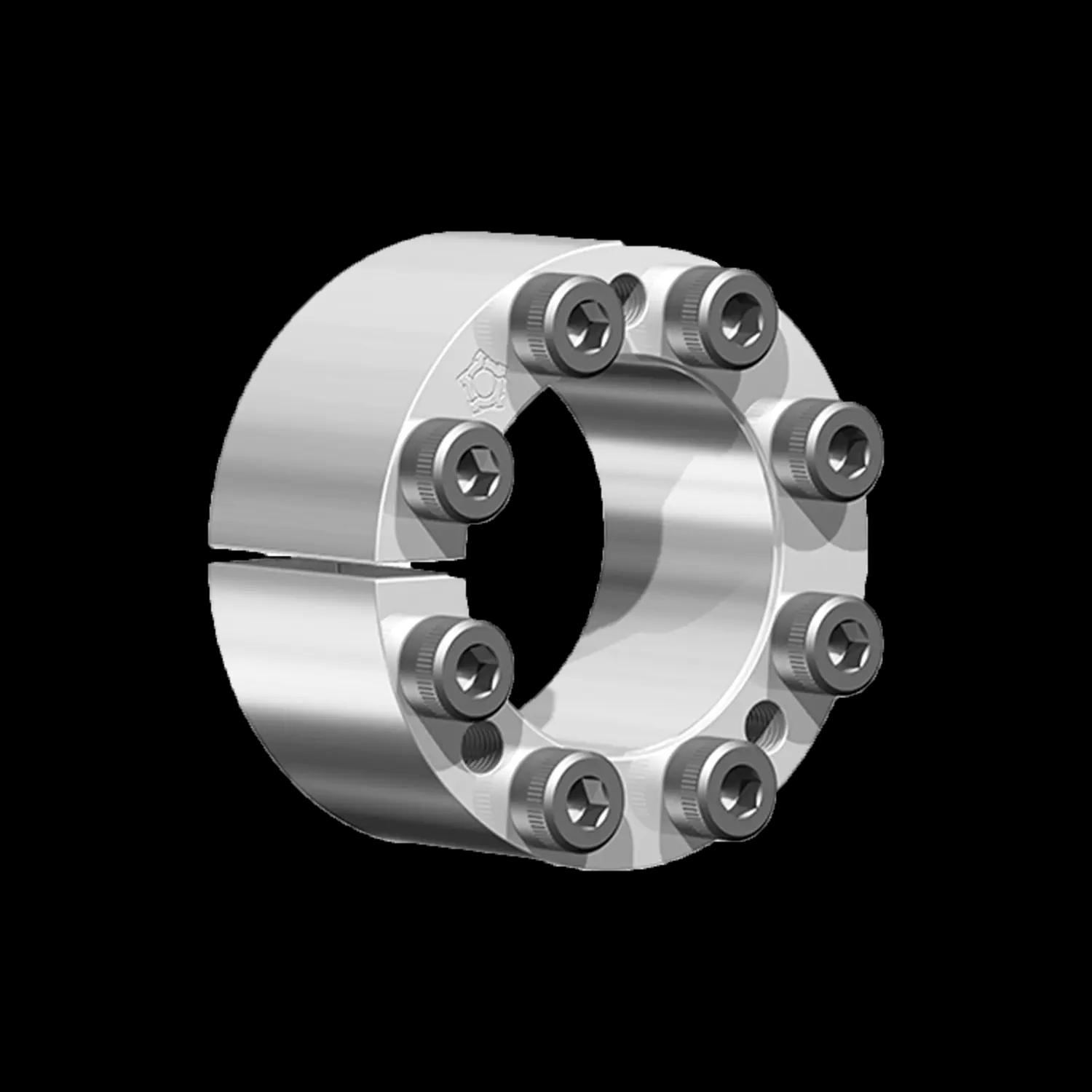

RfN 7061
Short 2-piece version, self-centring. Compact miniature locking assembly with low contact pressure.

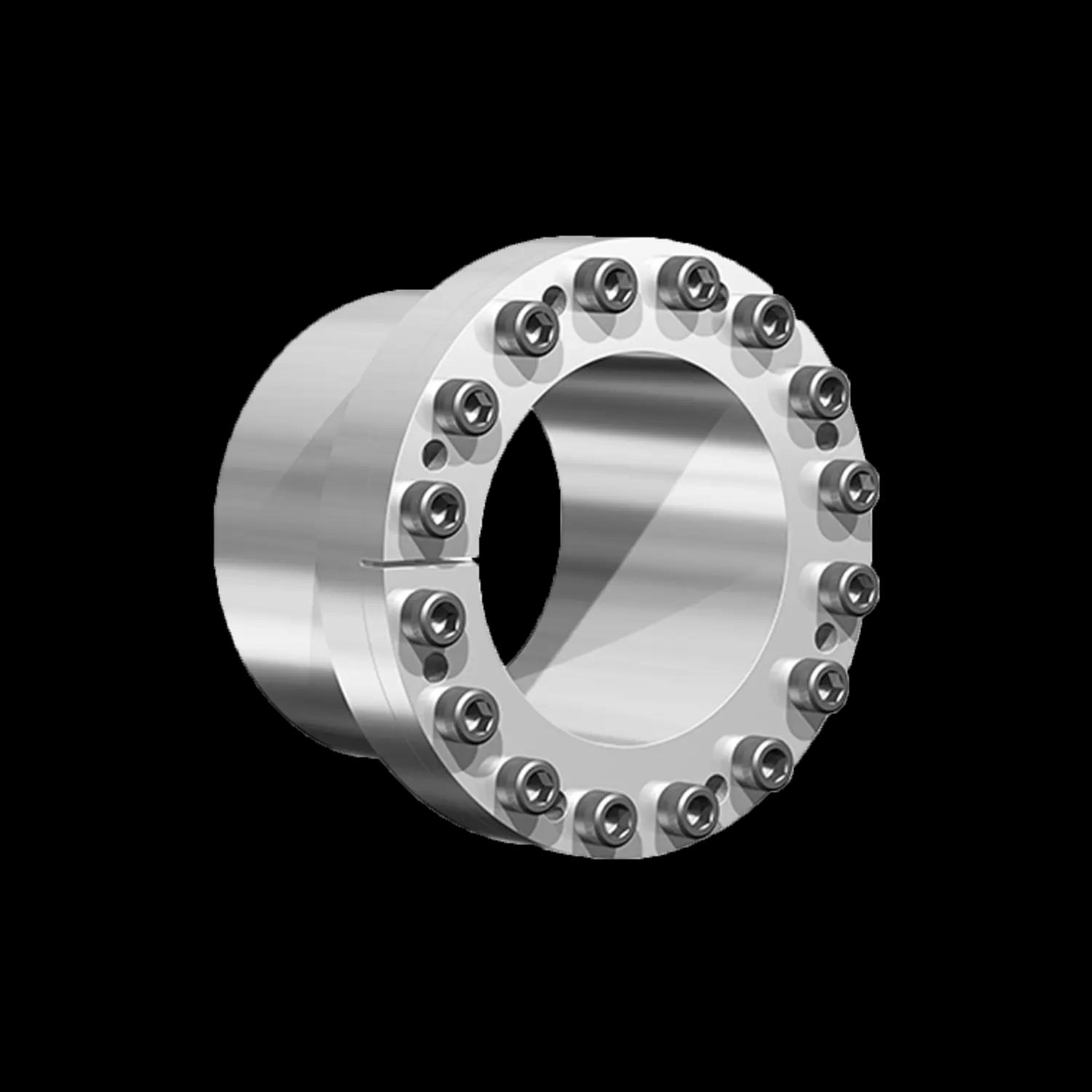

RfN 7110
A self-centring locking assembly with a unique and extremely compact design that requires no axial displacement.

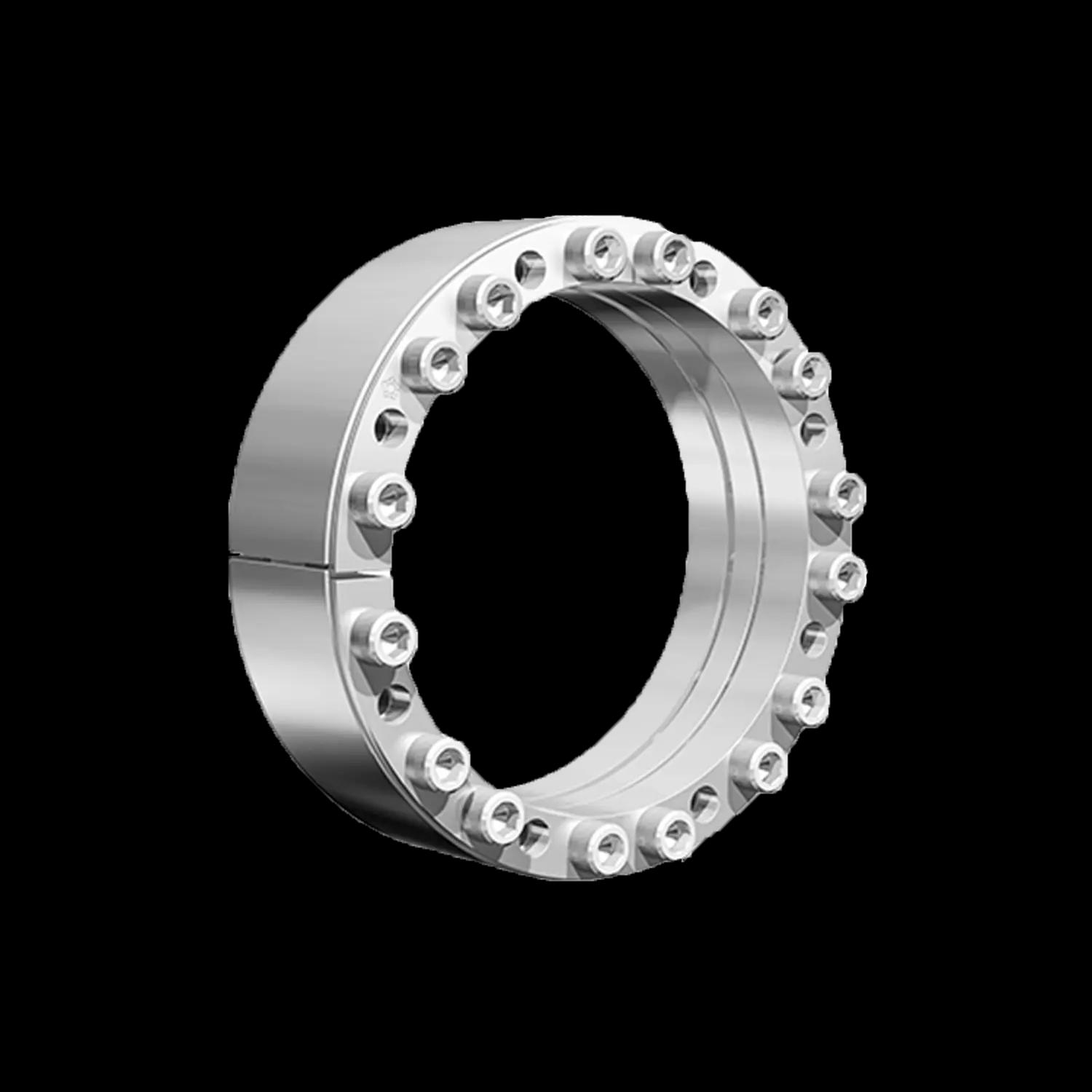

RfN 7515
Extended 3-piece version, self-centring. Suitable for bending moments and radial loads.
