Ultra high speed valves

MATRIX ultra high speed valves

MATRIX's ultra high speed valves are distinguished by their rapid switching speed, compactness, and exceptional reliability, even in the most demanding environments.

Designed to operate at very high speeds, they are particularly suited to air sorting systems (waste, packaging, food products) where responsiveness and precision are essential. Their innovative design ensures low energy consumption, long service life (several hundred million cycles), and insensitivity to vibrations.

In the medical sector, they are used for the rapid and precise regulation of air or gas flows in sensitive devices, such as ventilators or pressure-controlled therapy devices. Thanks to their switching frequency of up to 500 Hz and their easy integration, these solenoid valves represent a benchmark technical solution for all high-dynamic applications.

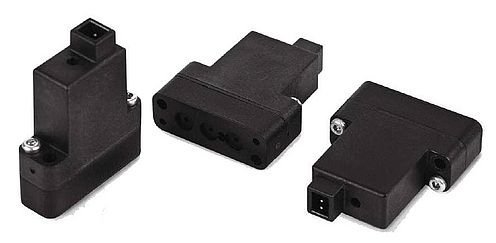

320 Series

Max. flow rate up to 30 Nl/min, available as 2/2, 3/2, NC or NO, individual or base mounting, frequency up to 200 Hz (300 Hz with the integrated Speed-up card option), service life up to 500 million cycles, opening time < 3 ms (<1.5 ms with the Speed-up option), closing time < 1.5 ms, operating pressure from 0 bar to 8 bar, IP 52

720 Series

Max. flow rate up to 100 Nl/min, available as 2/2, 3/2, NC or NO, individual or base mounting, frequency up to 100 Hz (250 Hz with the integrated Speed-up card option), service life up to 500 million cycles, opening time < 7 ms (<2 ms with the Speed-up option), closing time < 3 ms (<2 ms with the Speed-up option), operating pressure from 0 bar to 8 bar, IP 62

820 Series

Max. flow rate up to 100 Nl/min, available as 2/2, 3/2, NC or NO, individual or base mounting, frequency up to 100 Hz (250 Hz with the integrated Speed-up card option), service life up to 500 million cycles, opening time < 7 ms (<2 ms with the Speed-up option), closing time < 3 ms (<2 ms with the Speed-up option), operating pressure from 0 bar to 8 bar, IP 62

880 Series

Max. flow rate up to 430 Nl/min, available in 2/2 NC function, individual or base mounting, frequency up to 450Hz with Speed-up card control, service life up to 500 million cycles, opening time < 2 ms, closing time < 2 ms, operating pressure from 0 bar to 8 bar, IP 62 (IP 65 on request)

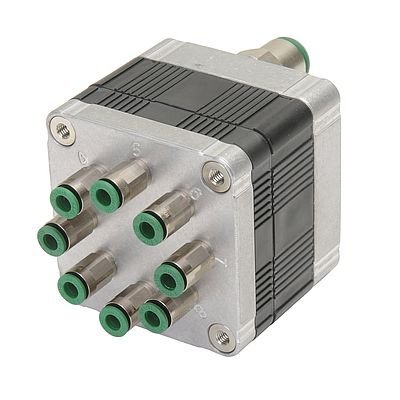

750 Series (Combination of 8 EVs in a single block)

Max. flow rate up to 800 Nl/min, 2/2, 3/2, 3/3, 5/2, NC or NO function, 8 individual outputs (or 4 or 2 or 1 only) or base mounting, frequency up to 250Hz with Speed-up card control, service life up to 500 million cycles, opening time < 2 ms, closing time < 2 ms, operating pressure from 0 bar to 8 bar, IP 52 (IP 65 on request)

860 Series (Combination of 9 EVs in a single block)

Max. flow rate up to 750 Nl/min, 2/2 NC function, 1 inlet and 1 outlet with proportional flow, frequency up to 500Hz with Speed-up card control and PCM controller (64 or 256 control levels), service life up to 500 million cycles, opening time < 1 ms, closing time < 1 ms, operating pressure from 0 bar to 6 bar, IP 52

890 Series (Combination of 9 EVs in a single block)

Max. flow rate up to 1,620 Nl/min, 2/2 NC function, 1 input and up to 9 independent outputs (or 4 or 3 or 2 or 1 only), frequency up to 500Hz with Speed-up card control, lifetime up to 500 million cycles, opening time < 1 ms, closing time < 1 ms, operating pressure from 0 bar to 8 bar, IP 62
