TUBUS Dampers

ACE’s TUBUS Series – High-Performance Damping Solutions

The ACE TUBUS profile dampers are high-performance damping elements, ideal for both continuous use and emergency stop scenarios. They are also a perfect alternative in applications where the stopping point doesn’t need to be ultra-precise. Designed for demanding environments with limited installation space, these dampers help safely decelerate moving masses.

Their use varies based on model:

• For continuous deceleration, models include: TUBUS TA, TS, TR-H, TR-L, TR-HD
• For emergency stop applications only: TUBUS TC, TC-S
• And for single-use emergency stops: TUBUS TI



These dampers are made from a co-polyester elastomer, a material that generates minimal heat during use and delivers consistent damping performance. All models are suitable for both emergency stops and continuous-duty applications.



Benefits of TUBUS Profile Dampers:

• Excellent price/performance ratio
• Long service life
• Highly durable material
• Seawater resistant
• Maintenance-free and ready-to-install



Mounting is quick and easy using the special screw included with each unit. These compact, cost-effective elements are ideal for end-of-travel damping on linear axes, in tool and machine manufacturing, pneumatic and hydraulic equipment, material handling systems, and other industrial applications.

Use the selection tool to identify the best solution for your application or reach out to one of our technical sales experts:

Find your ideal deceleration solution

Overview of TUBUS Models:



TUBUS TA – Compact design with high force absorption

• Energy capacity: 2 Nm/Cycle to 2,951 Nm/Cycle. Stroke: 5 mm to 48 mm. Diameter: 12 mm to 116 mm. Energy absorption: 58% to 73%. Temperature: -40°C to +90°C











TUBUS TS – Compact and flexible deceleration

• Energy capacity: 2 Nm/Cycle to 966 Nm/Cycle. Stroke: 7 mm to 56 mm. Diameter: 14 mm to 107 mm. Energy absorption: 35% to 64%. Temperature: -40°C to +90°C













TUBUS TR – Smooth deceleration in a compact format

• Energy capacity: 1.2 Nm/Cycle to 146 Nm/Cycle. Stroke: 17 mm to 60 mm. Diameter: 29 mm to 100 mm. Energy absorption: 25% to 45%. Temperature: -40°C to +90°C

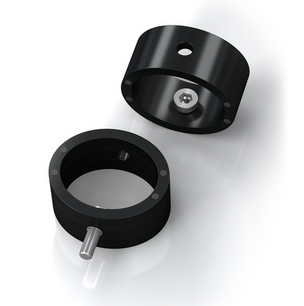

TUBUS TR-H – High energy absorption with smooth deceleration

• Energy capacity: 2.7 Nm/Cycle to 427 Nm/Cycle. Stroke: 15 mm to 56 mm. Diameter: 30 mm to 102 mm. Energy absorption: 39% to 62%. Temperature: -40°C to +90°C

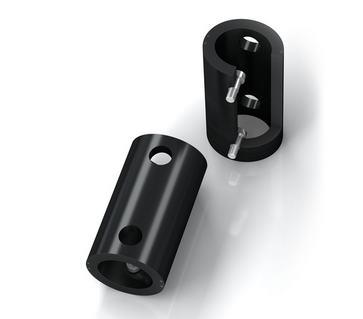

TUBUS TR-L – Long travel, high-performance damping

• Energy capacity: 7.2 Nm/Cycle to 10,780 Nm/Cycle. Stroke: 17 mm to 108 mm. Diameter: 29 mm to 188 mm. Energy absorption: 26% to 41%. Temperature: -40°C to +90°C

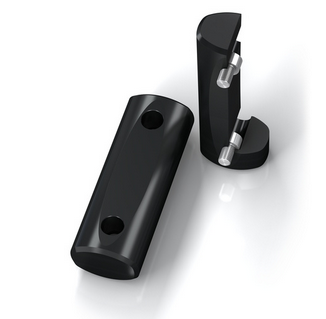

TUBUS TR-HD – Heavy-duty deceleration in a solid format

• Energy capacity: 405 Nm/Cycle to 11,840 Nm/Cycle. Stroke: 12 mm to 44 mm. Diameter: 42 mm to 117 mm. Energy absorption: 43% to 72%. Temperature: -40°C to +90°C.

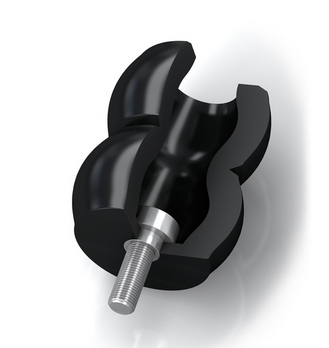

TUBUS TC & TCS – Compact powerhouse for emergency stops

• Energy capacity: 450 Nm/Cycle to 12,275 Nm/Cycle. Stroke: 39 mm to 198 mm. Diameter: 64 mm to 176 mm. Energy absorption: 31% to 64%. Temperature: -40°C to +90°C.

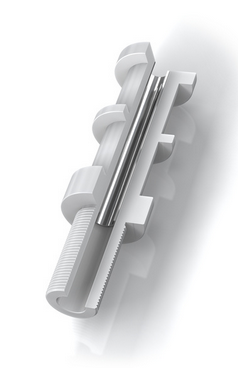

TUBUS TI – One-time use for critical emergency stops

• Energy capacity: 562 Nm/Cycle to 10,953 Nm/Cycle. Stroke: 25 mm to 80 mm. Diameter: 38 mm to 65 mm. Energy absorption: 91% to 96%. Temperature: -40°C to +90°C (copolyester) / -25°C to +50°C (polymer)
