Single-use emergency stop dampers

ACE Single-Use Protection – Incredibly Effective

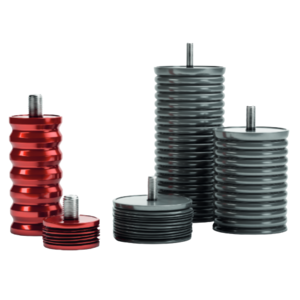

ACE offers a single-use energy absorption solution in the form of high-performance Crash Dampers, designed to provide critical safety during emergency stops. Each damper element, custom-manufactured from aluminum or steel, instantly absorbs extreme levels of kinetic energy in the event of an impact. Installed in series or parallel, these Safety Dampers can handle even higher energy levels in a single incident. Additionally, the deformation of the housing allows for post-incident analysis to help prevent future occurrences.

Unique Advantages of this Emergency Stop Solution

Up to 98% energy absorption efficiency
Excellent cost-to-performance ratio
Easy and straightforward installation
Seamless integration into existing setups
Quick replacement process
Minimized downtime after an incident

Thanks to these benefits, ACE Safety Dampers are already protecting a wide range of applications – including robotic linear axes, machine tool end stops, conveyor systems, and high-bay storage equipment.

Crash Damper Series :

CD20 to CD21: Aluminum or steel elements with energy capacity from 100 Nm/cycle to 350 Nm/cycle – Stroke: 11 mm to 24 mm
CD38: Aluminum or steel element with a maximum capacity of 4,400 Nm/cycle – Stroke: 80 mm
CD63: Aluminum or steel elements with capacity from 5,600 Nm/cycle to 11,200 Nm/cycle – Stroke: 80 mm to 160 mm
CD88: Aluminum or steel elements with capacity from 950 Nm/cycle to 7,690 Nm/cycle – Stroke: 45 mm to 145 mm
