Heavy Industrial Shock Absorbers

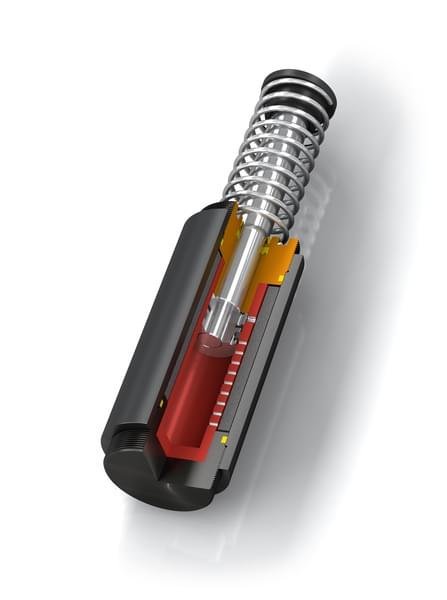

ACE Heavy Industrial Shock Absorbers

ACE’s heavy industrial shock absorbers complement BIBUS France’s range of damping technology. Whether self-compensating or adjustable, these shock absorbers stand out for their robustness and efficiency when braking heavy loads, with kinetic energy absorption reaching up to 126,500 Nm.

To maximize their performance, the effective mass range has been expanded from 700 kg to 326,000 kg for the self-compensating range and from 0.3 kg to 204,000 kg for the adjustable range.

CA2 to CA4: Self-compensating, with a capacity of 3,600 Nm/Cycle to 126,500 Nm/Cycle - Stroke from 50 mm to 406 mm
A½ to A3: Adjustable, with a capacity of 2,350 Nm/Cycle to 44,000 Nm/Cycle - Stroke from 50 mm to 305 mm

You can determine the deceleration technology required for your application by clicking on the link below or by contacting our sales representatives:

Determine the product that best suits your needs
