Clamping Elements

Clamping elements from the ACE LOCKED series

The ACE LOCKED series pneumatic locking systems provide precise safety functions for stopping or braking heavy loads, particularly in emergency situations.

In addition to classic applications like locking rails, rods, or rotating elements, BIBUS France offers specific locking solutions for Z-axes, ensuring reliable safety for axes subjected to gravitational loads: the LOCKED LZ-P series.

Advantages of Using Clamping elements

Available as emergency stop brakes or locking devices
Enhanced safety for industrial processes
Very short stopping distances
High locking forces
Ideal for standard rail or rod sizes
Compact design
Easy installation
Rail locks are perfect for machine tools, conveyor systems, feeding devices, moving tables, and assembly stations
Rod locks are ideal for lifting systems, light presses, punching systems, or stacking equipment

Different Rail Locking Models

LOCKED PL (High clamping power for all rail profiles)

For linear guide rails from leading manufacturers from 20 mm to 60 mm - Locking force from 540 to 10,000 N - 4 bar to 6 bar - up to 1 million cycles.

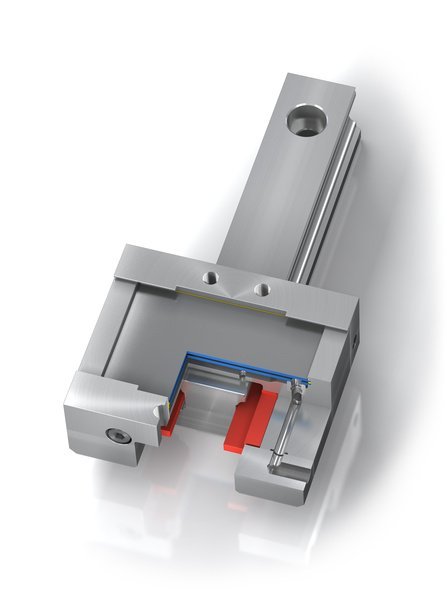

LOCKED PLK (High clamping power for all campact design rail profiles)

For linear guide rails from leading manufacturers from 15 mm to 55 mm - Locking force from 300 to 2,100 N - 4 bar to 6 bar - up to 1 million cycles.

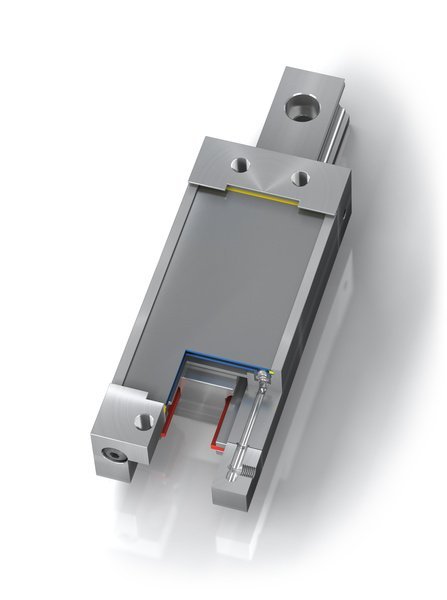

LOCKED SL (Combined clamping and braking)

For linear guide rails from leading manufacturers from 20 mm to 65 mm - Locking force from 540 to 10,000 N - 4 bar to 6 bar - up to 1 million cycles or 500 emergency braking applications.

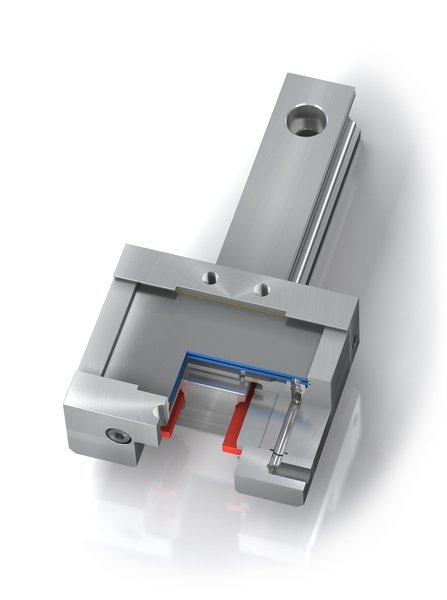

LOCKED SLK (Safety Clamping for Rail Systems, Compact)

For linear guide rails from leading manufacturers from 15 mm to 55 mm - Locking force from 300 to 2,100 N - 4 bar to 6 bar - up to 1 million cycles or 500 emergency braking operations.

LOCKED LZ-P (Certified Saefty Clamping)

For vertical linear guide rails from leading manufacturers from 15 mm to 25 mm (originally developed for Bosch Rexroth rails) - Clamping force from 1,500 to 2,500 N - 4 bar to 6 bar - up to 1 million cycles.

The different models of rod blockers

LOCKED PN (Rod clamping with maximum clamping force)

For vertical linear guide rails from leading manufacturers from 15 mm to 25 mm (originally developed for Bosch Rexroth rails) - Clamping force from 1,500 to 2,500 N - 4 bar to 6 bar - up to 1 million cycles.

LOCKED PRK (Rod clamping with maximum clamping force in a compact size)

For rods from 20 mm to 40 mm - Locking force from 700 to 5,000 N (axial or radial) - Locking torque from 7 Nm to 100 Nm - 4 bar to 6 bar - up to 1 million cycles - Modular system offering the possibility of stacking several blockers to duplicate the locking force.
