CKD Miniature flow rate sensor



RAPIFLOW® digital flow meters, such as the FSM-H, FSM-V, or FSM3 from CKD, provide accurate, real-time monitoring of gas flow rates, improving efficiency and leak detection in pneumatic systems.

Thanks to their compact design and compatibility with various gases, these sensors are easily integrated into various industrial applications such as leak testing, suction cup detection, gas flow measurement, and more, contributing to optimized management of compressed air consumption.

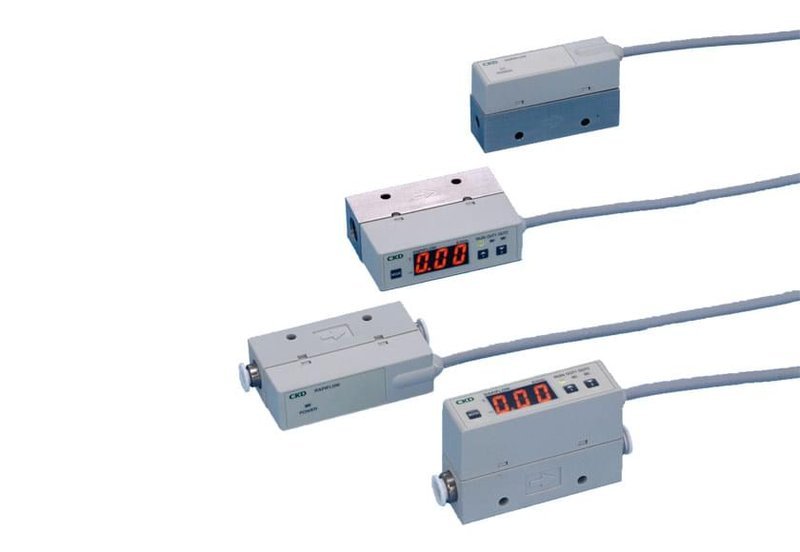

FSM-H and FSM-V Series



• FSM-V : compatible with compressed air and N2, flow range from ±0.05 l/min to ±10 l/min, pressure range from -0.9 bar to 2 bar, analog or digital output, response time 0.005 sec, repeatability of ±2% of full scale, linearity of ±5% of full scale
• FSM-H : compatible with compressed air and N2, flow range from 0.25 ml/min to 100 ml/min, pressure range from - 0.9 bar to 10 bar, display, analog or digital output, response time 0.05 sec, repeatability of ±0.5% of full scale, linearity of ±3% of full scale

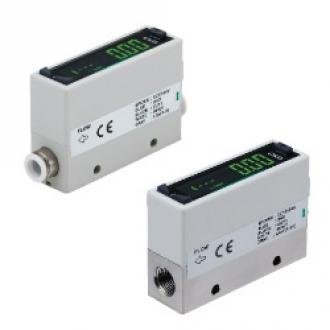

FSM 3 Series

• FSM 3 : compatible with compressed air, N2, Ar, O2, CO2, resin or stainless steel body, unidirectional or bidirectional, flow range from ±0.015 l/min to ±1000 l/min, pressure range from -0.9 bar to 7.5 bar, digital or bargraph display or IO-Link, analog or digital output, response time 0.05 sec, repeatability ±1% of full scale, accuracy ±3% of full scale





Full details, technical specifications, and variants are available by clicking the link below.
