Flow limiters

CKD Flow limiters



Flow limiters are essential components in pneumatic systems, enabling precise control of airflow to optimize the performance of equipment such as linear actuators. By adjusting the flow rate, they regulate the speed of actuators and ensure optimal synchronization of movements.

BIBUS France offers a wide range of flow limiters suitable for various industrial applications. Available series include:

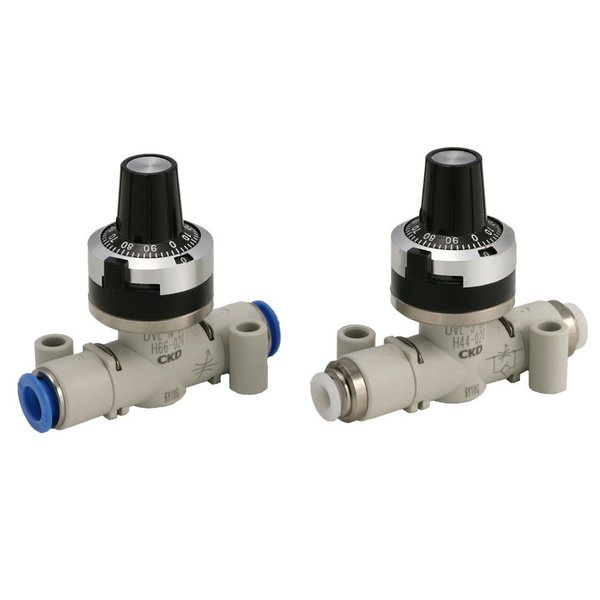

Needle valve with adjusting dial DVL Series

• Adjusting screw with vernier scale and adjustment locking button, linear flow thanks to the rotary needle valve from 18 l/min to 440 l/min, instant connection from Ø4 mm to Ø12 mm, operating pressure from -1 bar to 10 bar.

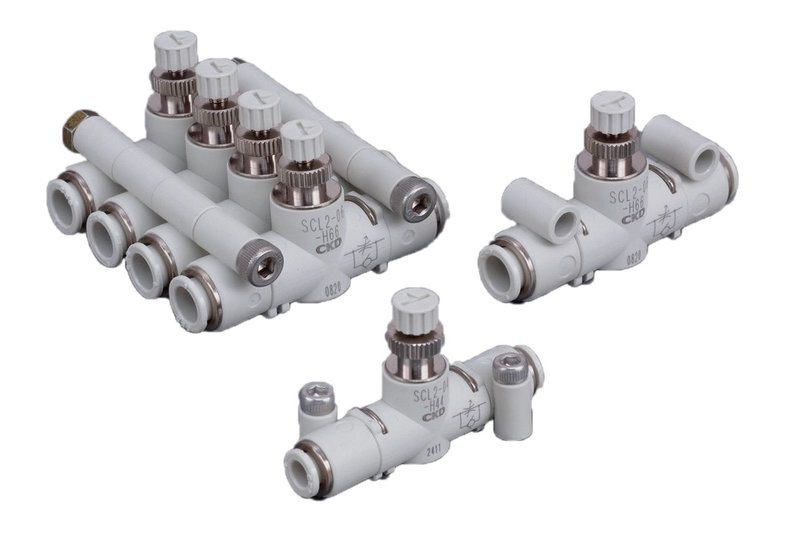

Speed controller Line type with push-in fitting SCL2/ SCD2 series



• In-line for linear cylinders with piston Ø4 mm to Ø75 mm, instant connection suitable for tubes with outer diameters from Ø1.8 mm to Ø12 mm, flow control from 10 l/min to 1,200 l/min (under 5 bar pressure), single or double adjustment, 360° rotating mounting hole.

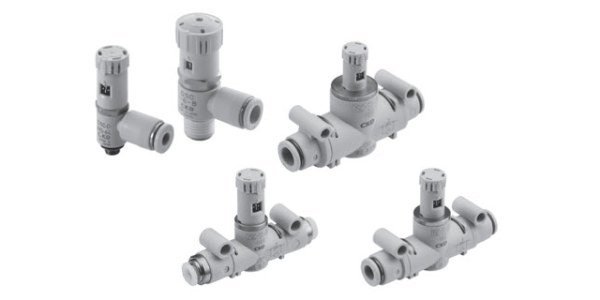

Speed controller with adjusting dial DSC series



• Adjusting screw with adjustment dial and adjustment locking knob for linear cylinders with piston Ø6 mm to Ø100 mm, linear flow thanks to the rotary needle valve from 6.7 l/min to 1,200 l/min, instant connection from Ø3.2 mm to Ø12 mm, in-line or banjo mounting, operating pressure from 0.5 bar to 10 bar.







Full details, technical specifications, and variants are available by clicking the link below.
