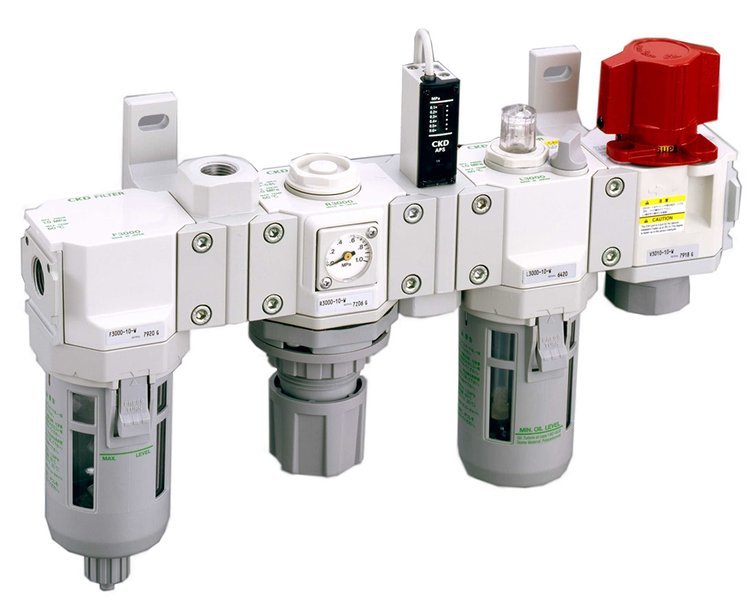

F.R.L.Combination Unit

F.R.L.Combination Unit : Optimize compressed air treatment for your pneumatic systems



Modular FRL units are essential for ensuring optimal compressed air preparation in pneumatic systems. They combine three main functions: Filtration (F), Regulation (R), and Lubrication (L).

Filtration (F): The filter removes solid particles and impurities from the compressed air, protecting downstream components and improving system life.

Regulation (R): The regulator maintains a constant and appropriate pressure in the system, ensuring optimal operation of pneumatic equipment.

Lubrication (L): The lubricator adds a fine oil mist to the compressed air, reducing wear and improving the performance of moving components.

The modularity of these units allows for easy customization, offering the ability to combine or adjust modules according to the specific requirements of your system. This flexibility ensures optimal adaptation to the technical and operational constraints of each installation.

With the BIBUS France's modular FRL units, you are opting for reliable and efficient solutions, designed to optimize the quality of compressed air and extend the lifespan of your pneumatic equipment.



• W1000/W3000/W4000/W8000-W: Standard filter-regulator, connection from 1/8 to 1" (Rc, NPT, or G), flow rate up to 10,000 l/min, pressure range from 0.5 bar to 8.5 bar (optional 0.5 to 3.5 bar), filtration 30/5 µ and 0.3 µ, manual or automatic purge.


• R1000/R2000/R3000/R4000/R6000/R8000-W: Standard pressure regulator, connection from 1/8 to 1" (Rc, NPT, or G), flow rate up to 14,000 l/min, pressure range from 0.5 bar to 8.5 bar (optional 0.5 to 3.5 bar).


• F1000/F3000/F4000/F6000/F8000-W: Standard filter, connection from 1/8 to 1" (Rc, NPT, or G), flow rate up to 10,000 l/min, pressure up to 10 bar, filtration 5 µ and 0.3 µ, manual or automatic purge.


• L1000/L3000/L4000/L8000-W: Standard lubricator, connection from 1/8 to 1" (Rc, NPT, or G), flow rate up to 10,000 l/min, pressure up to 10 bar.


• M1000/M3000/M4000/M6000/M8000-W: Standard de-oiler, connection from 1/8 to 1" (Rc, NPT, or G), flow rate up to 10,000 l/min, pressure up to 10 bar, filtration 0.01 µ and 0.3 µ and charcoal.


• P1100/P4100/P8100-W: Mechanical pressure switch, connection from 1/8 to 1" (Rc, NPT, or G), adjustable pressure range from 1 to 6 bar.


• V3301/V3321-W: Progressive pressurization, connection from 1/4, 3/8, and 1/2", manual or electric control, voltage 12/24 Vdc or 100/110/200/220 Vac.

• V10*0 / V60*0-W: Shut-off valve, lockable model, connection from 1/8 to 1" (Rc, NPT, or G).













All technical details, data sheets, and available variants can be found by clicking the link below.
