Adjustable MC dampers

The different MC gas springs:

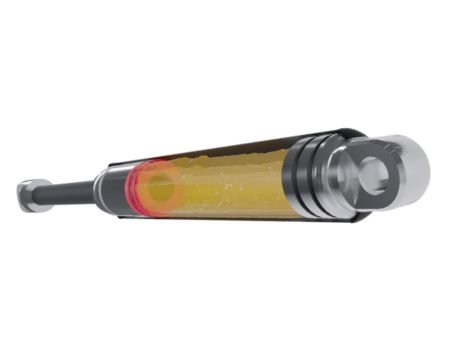

Standard MC Damper

Available in 4 sizes, offering damping over the entire stroke with exclusive oil filling. Body/piston rod diameters from 3/10 mm to 30/70 mm, strokes from 10 mm to 1000 mm, and F1 forces ranging from 7 N to 40,000 N.

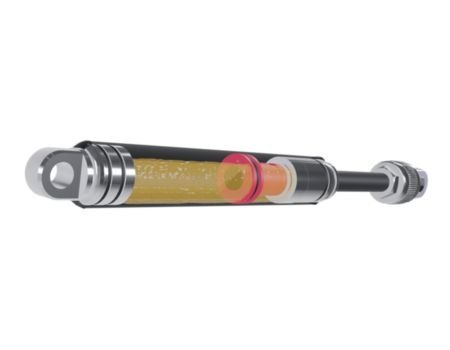

Adjustable MC Dampers

Adaptés aux intensités d'amortissement variables ou non définies, avec des diamètre de 10/22 mm à 10/28 mm, des courses de 10 mm à 500 mm et une force F1 de 50 N à 1300 N.

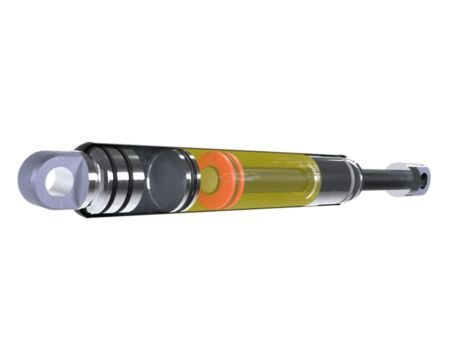

MC Damper with Floating Piston

Available in 6 sizes for axial or radial installation, with diameters from 4/12 mm to 14/40 mm, strokes from 10 mm to 700 mm, and forces ranging from 20 N to 2600 N.

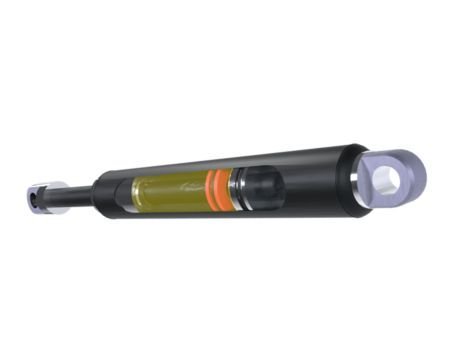

MC damper without free travel

Available in 3 sizes for controlled bidirectional damping without free travel, featuring a piston moving within a fixed oil chamber. Diameters from 10/12 mm to 14/40 mm, strokes from 20 mm to 250 mm, and forces ranging from 50 N to 2600 N.

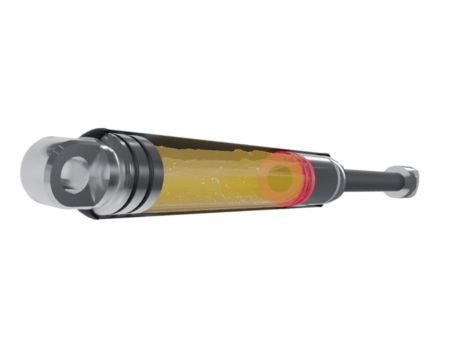

HB-damper

Available in 8 sizes, for precise speed and damping control in both directions. Diameters from 6/15 mm to 14/40 mm, strokes from 25 mm to 800 mm, and forces ranging from 800 N to 10,000 N.





All details, technical datasheets, and variants are available via the link below.

More product information
