Lateral positioning

Custom linear positioners for synchronized lifting of side loads

Linear positioners make it possible to raise side loads. It is possible to synchronize several positioners of the same race/same speed. They are made on order, depending on your specifications, for races ranging from 300 mm to 2000 mm and forces from 400 to 1800N per positioner.

All applications

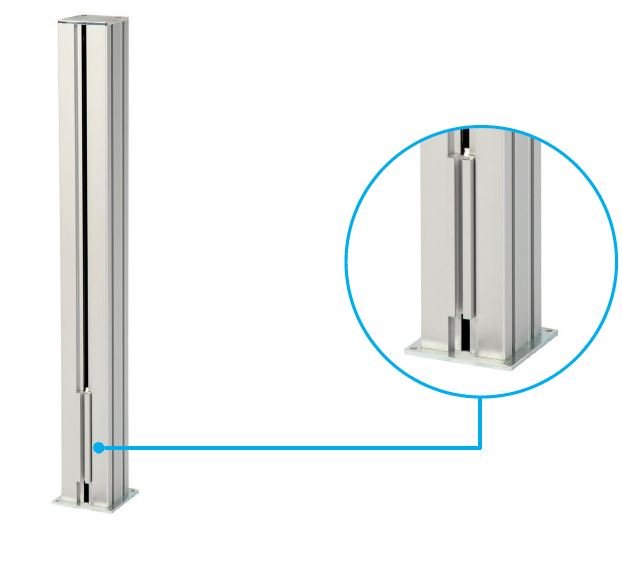

• Ik90



Electric adjusters offer machine manufacturers an unrivaled combination of power, flexibility and ease of use.

Designed for the precise positioning of heavy loads, these elevators are ideal for applications where precision and reliability are crucial.

Recommended use for double -tray workstations or their accessories (screens), for layouts, positioning on machines or assembly stations. Works in vertical or horizontal.

More product information here

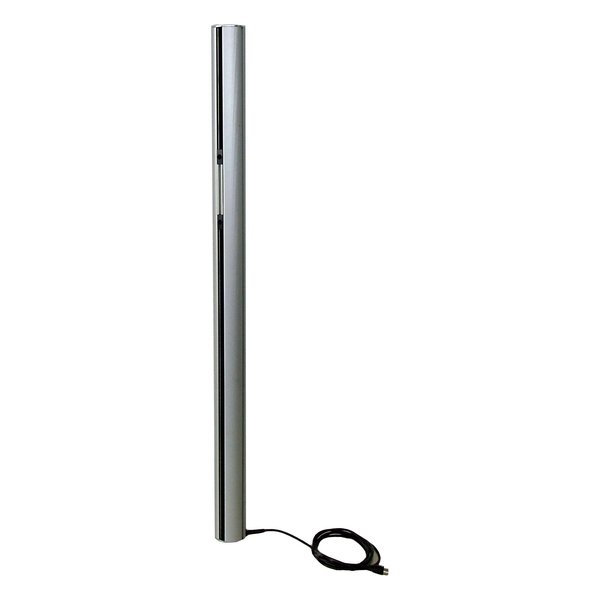

• I 67 Koax



Linear positioner consisting of an aluminum column with integrated motorization, very light, available as standard up to 2m or a maximum race of 1.62 m.

Recommended use for double -tray workstations or their accessories (screens), for layouts, and medical equipment.

Works in vertical or horizontal.
Maximum load capacity 1000N
Possible of 2 synchronized or non -synchronized cursors. (1 engine cursor and the other slave, or 2 cursors traveling in identical or opposite direction).
Can be synchronized up to 4 columns.

More product information here

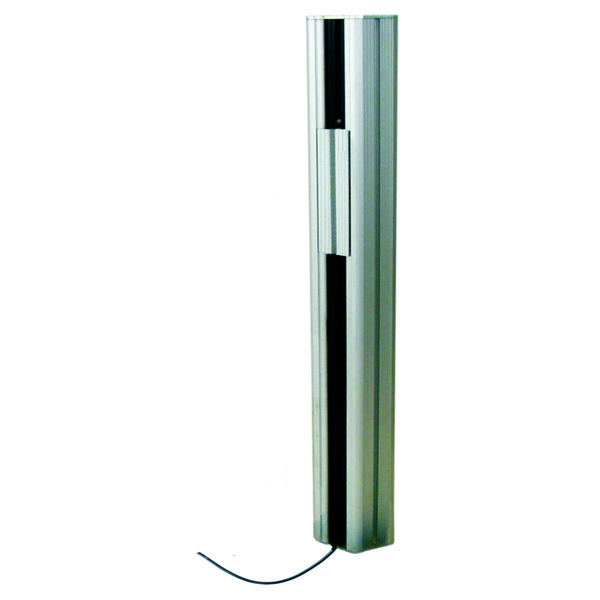

• I 140 ST



Linear positioner with integrated motorization with one or 2 cursors.
The sliders can be synchonized or desynchronized.
Load capacity up to 2500n and treble up to 50 mm/s.
Possible synchronization up to 4 columns.
Fixed power cable outlet at the foot of the column.
