Compact Electric Linear Actuators

Bansbach offers custom electric actuators with an integrated motor in the housing, providing optimal compactness.

The wide range of options and materials makes them suitable for various industries, including food processing, marine, defense, medical applications, as well as outdoor installations (building facades). Recently, they are also available for submerged use up to 100m.

All Bansbach actuators can be customized according to your specifications, with over a billion possible combinations.



The Different Models of Electric Actuators









More product information

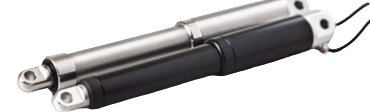

EasyE-35 Electric Actuator

• Motor: 12/24V DC
• Load capacity: up to 2200 N
• Stroke: 50 to 750 mm
• Speed: 3 to 33 mm/s
• Available in standard steel or stainless steel versions, with option for harsh environments (IP68/IP69K)
• Certification available upon request (IEC60601-1, etc.)
• Version with integrated controller on request (EEL-35I)
• Underwater depth up to 100 metres (UW)



More information about the product

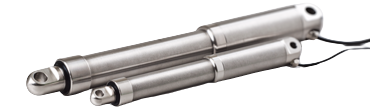

EasyE-50 Electric Actuator

• Motor: 12/24V DC
• Load capacity: up to 4500 N
• Stroke: 50 to 750 mm
• Speed: 4 to 70 mm/s
• Available in standard steel or stainless steel versions, with option for harsh environments (IP68/IP69K)
• Certification available upon request (IEC60601-1, etc.)
• Version with integrated controller on request (EEL-50I)
• Underwater depth up to 100 metres (UW)



More information about the product















EasyE-60 Electric Actuator

• Motor: 24V DC
• Load capacity: up to 10,000 N
• Stroke: 50 to 750 mm
• Speed: 5 to 31 mm/s
• Available in standard steel or stainless steel versions, with option for harsh environments (IP68/IP69K)
• Certification available upon request (IEC60601-1, etc.)
• Version with integrated controller on request (EEL-60I)



More information about the product

All variants are available by clicking the link below. You will find a configurator that allows you to design your custom electric actuator and download your 3D plan.

More information here
