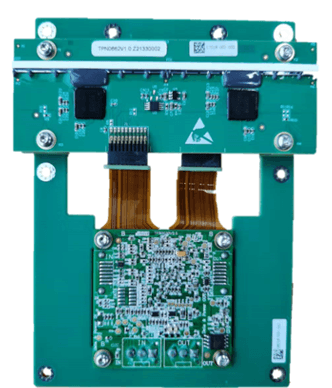

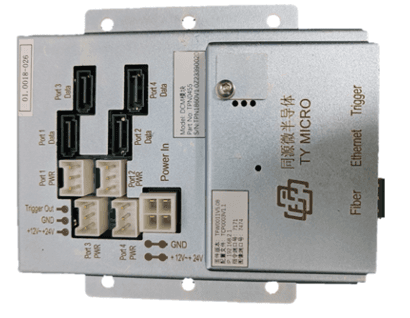

PANGU is a high-speed product family of digital X-ray detector solutions that are specially developed for large scale line-scanners. Its typical applications include ore and material sorting, container, vehicle inspection, industrial NDT, etc. PANGU detector solutions are available in pixel pith options of 0.8, 1.6, 2.5 mm. This product family comes with multiple scintillator options for various energy ranges in single and dual energy imaging applications. The DCM board has a robust Gigabit Ethernet interface, and a software development kit is available for easy integration.
|
Pixel pitch |
0.8 mm |
1.6 mm |
2.5 mm |
|
Detector length |
10.2 mm |
101.6 mm |
160.4 mm |
|
Min integration time |
145 μs | ||
|
Max Qty of detectors supported |
64 pcs | ||
|
Crystal material for low energy scintillator |
Film GOS, etc. | ||
|
Crystal material for high energy scintillator |
CsI(Tl)，GGAG，etc. | ||
|
Gain range |
0.5 pF – 3.5 pF | ||
|
Gain step |
0.5 pF | ||
|
A/D precision |
16 bits | ||
|
Network interface |
Gigabit Ethernet | ||
|
Power supply |
+12V - +24V | ||
|
Application/storage temperature |
-10℃ - 60℃ / -40℃ - 60℃ | ||
|
Application/storage humidity |
<80% RH (no condensation) / <95% RH (no condensation) | ||
